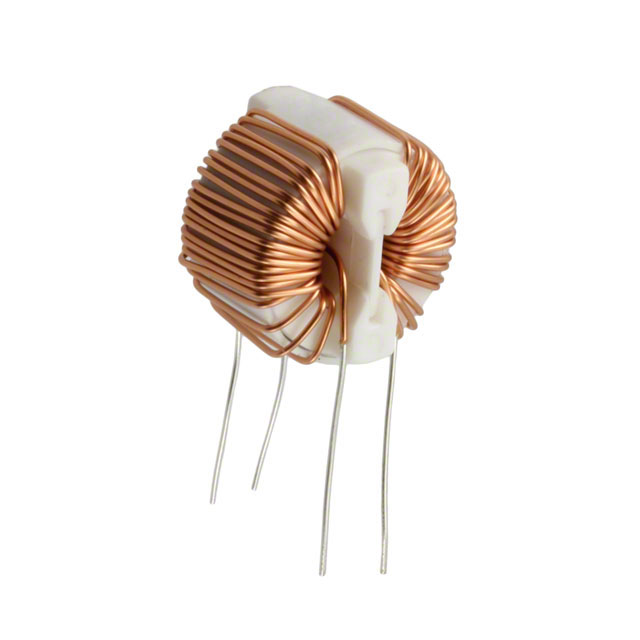

SC-01-20G

$1.44

Description：CMC 2MH 1A 2LN TH
Series：SC-G
Mfr：KEMET
Package：Bulk

SKU:f96a251cbed5 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SC-01-20G is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 2MH 1A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for SC-01-20G

Description：CMC 2MH 1A 2LN TH
Series：SC-G
Mfr：KEMET
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1A
DC Resistance (DCR) (Max)：100mOhm
Voltage Rating - DC：250V
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.689" Dia x 0.551" W (17.50mm x 14.00mm)
Height (Max)：0.689" (17.50mm)
Package / Case：Vertical, No Base, 4 PC Pin
Inductance @ Frequency：2 mH @ 100 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for SC-01-20G

SC-01-20G

Common Mode Chokes Overview

The KEMET SC-01-20G is a through-hole common mode choke belonging to the SC-G/GS series. It features a single channel with an inductance of 2 mH measured at 100 kHz and a maximum DC current rating of 1 A. The component has a maximum DC resistance of 100 mOhms and operates within a temperature range of -25°C to +105°C. Rated for 250 V, it utilizes proprietary ferrite material suitable for frequencies greater than or equal to 150 kHz.

Common Mode Chokes Feature Summary

Utilizes proprietary 10H ferrite material optimized for high-frequency noise suppression
Designed for effective operation in frequency ranges starting from 150 kHz
Supports standard PCB mounting via through-hole termination

Common Mode Chokes Applications

AC line filtering for electronic equipment
Common mode noise suppression in power circuits
EMI reduction in general-purpose electronics

Common Mode Chokes Procurement Notes

Verify the specific ordering suffix against official KEMET documentation to ensure correct electrical characteristics and packaging configuration. Confirm that the selected variant matches the required inductance tolerance and current rating for the target application. Cross-reference the manufacturer part number with authorized distributors to validate authenticity and availability status before finalizing procurement orders.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring common mode noise attenuation above 150 kHz. Ensure the operating environment stays within the specified -25°C to +105°C thermal limits. Verify that the 1 A current rating and 250 V voltage rating align with the system's electrical requirements. Consider the through-hole package dimensions for adequate PCB spacing and mechanical stability during assembly.

Common Mode Chokes Part Context

This component is part of the KEMET SC-G/GS series of common mode chokes. The series offers various sizes and specifications tailored for different power and filtering needs. These components are engineered to provide reliable electromagnetic interference suppression in AC line applications using specialized ferrite core materials.
