SC-01-20GS

Common Mode Chokes Overview

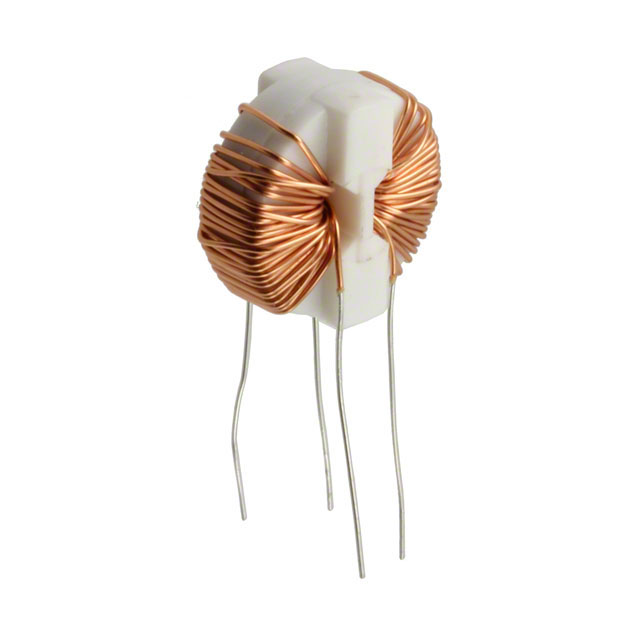

The KEMET SC-01-20GS is a through-hole common mode filter from the SC-G series. It features an inductance of 2 mH and a maximum current rating of 1 A. The component has a DC resistance of 180 mΩ and operates within a temperature range of -25 °C to +105 °C. Physical dimensions are 15 x 8.5 x 15 mm with vertical, baseless mounting.

Common Mode Chokes Feature Summary

• Utilizes proprietary ferrite core design for effective noise suppression
• Provides common mode filtering for two-line circuits
• Supports through-hole mounting for robust integration

Common Mode Chokes Applications

• General noise suppression applications
• Power supply input filtering
• Signal line interference reduction

Common Mode Chokes Procurement Notes

Verify the specific datasheet version for the SC-G series to confirm exact electrical tolerances and thermal characteristics. Ensure the selected component matches the required 2 mH inductance and 1 A current rating for the target circuit design. Confirm compliance with relevant safety standards if used in mains-connected equipment.

Common Mode Chokes Selection Notes

Select this component when a compact, through-hole common mode choke is required for low-current applications up to 1 A. The 2 mH inductance offers moderate attenuation for common mode noise. Consider the physical footprint of 15 x 8.5 x 15 mm for PCB layout constraints and verify the operating temperature range meets environmental requirements.

Common Mode Chokes Part Context

This part belongs to the KEMET SC-G series of common mode filters. These components are designed for general-purpose noise suppression using proprietary ferrite materials. The series offers various inductance values and current ratings to suit different circuit protection needs.

Common Mode Chokes Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
