SC-01-30G

Common Mode Chokes Overview

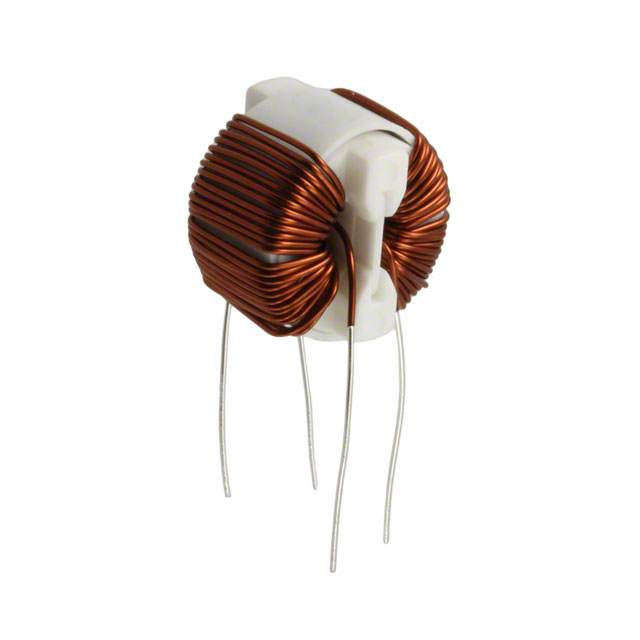

The KEMET SC-01-30G is a single-channel common mode filter choke designed for PCB through-hole mounting. It features an inductance of 3 mH and supports a maximum DC current of 1 A with a maximum DC resistance of 120 mOhms. The component operates within a temperature range of -25°C to +105°C and carries UL 94 V-2 flame retardant rating.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for AC line applications
• Constructed with UL 94 V-2 flame retardant rated materials
• Designed for reliable operation across a wide industrial temperature range

Common Mode Chokes Applications

• AC line filtering in electronic equipment
• Common mode noise suppression in power supplies
• EMI reduction in consumer electronics

Common Mode Chokes Procurement Notes

Verify the specific suffix 'G' against official KEMET documentation to confirm material composition and compliance status. Ensure the selected variant matches the required thermal and electrical specifications for the target application environment before finalizing procurement.

Common Mode Chokes Selection Notes

Select this component when a 3 mH inductance at 1 A is required for common mode filtering. Consider the through-hole package style and operating temperature limits relative to the system's thermal constraints and mechanical mounting requirements.

Common Mode Chokes Part Context

This part belongs to the KEMET SC-G series of common mode chokes, which are engineered for AC line applications. The series offers various sizes and specifications to accommodate different current and inductance needs while maintaining robust performance standards.

Common Mode Chokes Replacement Considerations

Consult official KEMET substitution guides for verified alternatives. Cross-reference inductance, current ratings, and physical dimensions to ensure compatibility with existing board layouts and circuit requirements.
