SC-01-80G

Common Mode Chokes Overview

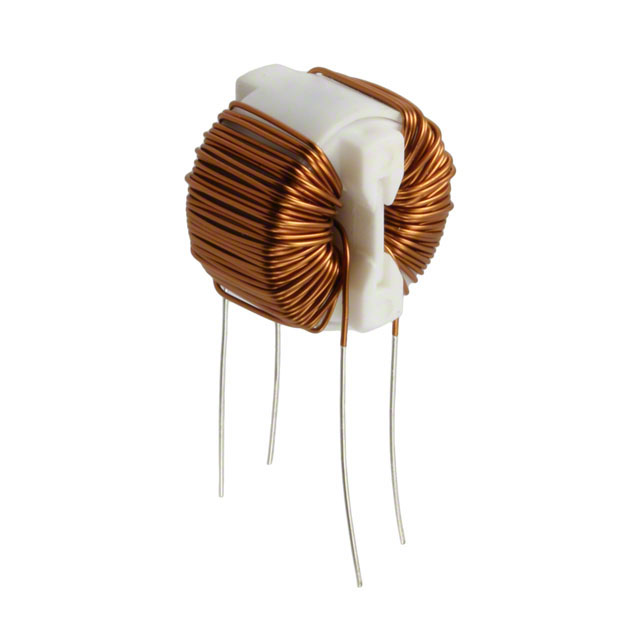

The KEMET SC-01-80G is a through-hole common mode choke belonging to the SC series. It features an inductance of 8 mH at 100 kHz and a maximum DC current rating of 1 A. The component has a maximum DC resistance of 300 milliohms and operates within a temperature range of -25 °C to +105 °C. Designed for AC line filtering, it supports voltage ratings up to 250 VAC/DC.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for AC power lines
• Utilizes ferrite core material for effective EMI filtering
• Designed for horizontal through-hole mounting

Common Mode Chokes Applications

• AC line input filtering
• EMI suppression in power supplies
• General electronic equipment noise reduction

Common Mode Chokes Procurement Notes

Verify the specific datasheet version to confirm exact electrical tolerances and physical dimensions. Ensure the selected variant matches the required 1 A current rating and 8 mH inductance specifications for your circuit design. Confirm compliance with relevant safety standards before integration.

Common Mode Chokes Selection Notes

Select this component when a compact through-hole solution is required for low-current AC line applications. Compare its 300 milliohm DCR against circuit loss requirements. Consider the 105 °C operating limit for thermal management in enclosed environments.

Common Mode Chokes Part Context

This part belongs to the KEMET SC series of small-type common mode chokes. These components are engineered for general-purpose electromagnetic interference suppression in consumer and industrial electronics where space constraints favor surface or low-profile through-hole technologies.

Common Mode Chokes Replacement Considerations

Consult official KEMET documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' SC-series equivalents without validating pinout and electrical parameters.
