SC-01-S07J

Common Mode Chokes Overview

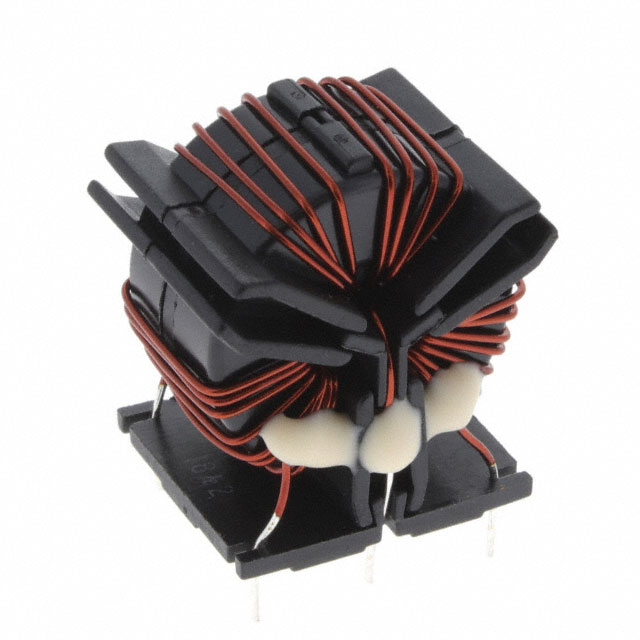

The KEMET SC-01-S07J is a single-phase common mode choke designed for AC line filtering applications. It features a through-hole mounting style and operates within a temperature range of -25°C to +120°C. The component provides an inductance of 700 µH with a maximum DC current rating of 1 A and a maximum DC resistance of 38 mΩ. Rated for 250 V, this unshielded ferrite core filter is suitable for suppressing electromagnetic interference in power supply circuits.

Common Mode Chokes Feature Summary

• Provides effective common mode noise suppression for AC line applications
• Utilizes a robust ferrite core construction for stable performance
• Designed for reliable operation across a wide industrial temperature range

Common Mode Chokes Applications

• AC power line filtering
• Electromagnetic interference suppression in power supplies
• General purpose EMI/RFI mitigation circuits

Common Mode Chokes Procurement Notes

Verify the specific voltage and current ratings against your circuit requirements before integration. Confirm that the through-hole package dimensions align with your PCB layout constraints. Ensure the operating temperature range meets your environmental specifications. Cross-reference the manufacturer datasheet for detailed mechanical drawings and testing standards to guarantee compatibility.

Common Mode Chokes Selection Notes

Select this component when a low-inductance, high-current common mode choke is required for single-phase AC lines. Compare its 700 µH value and 1 A rating against alternative filters in the SC series. Consider the thermal performance and physical size relative to space limitations on the target printed circuit board assembly.

Common Mode Chokes Part Context

This component belongs to the KEMET SC Three Phase series, which includes various common mode chokes for power line filtering. While the series name suggests three-phase capability, this specific model is configured for single-phase applications. It shares design principles with other units in the lineup but differs in electrical ratings and physical footprint.

Common Mode Chokes Replacement Considerations

Consult official substitution lists for verified alternatives. Check equivalent models from the same series with matching inductance and current ratings. Verify pinout compatibility and thermal characteristics before replacing the original part.
