SC-02-06G

Common Mode Chokes Overview

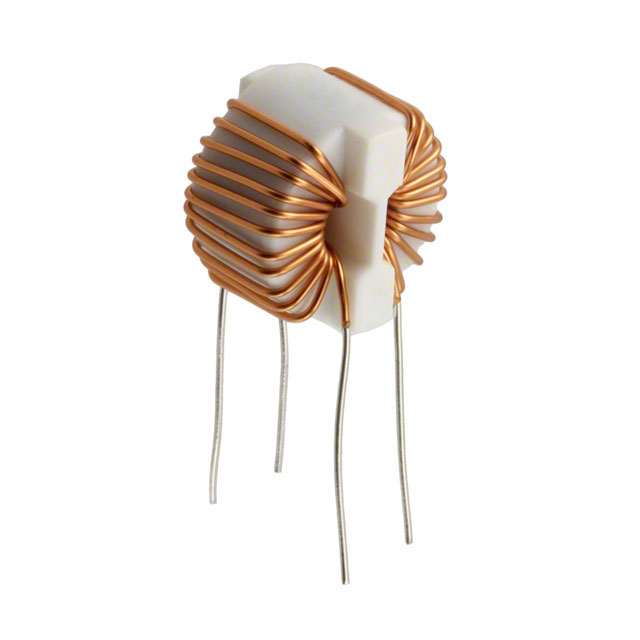

The KEMET SC-02-06G is a through-hole common mode choke designed for AC line filtering applications. It features an inductance of 0.6 mH and supports a maximum DC current of 2 A. The component exhibits a maximum DC resistance of 50 mΩ and operates within a temperature range of -25°C to +105°C. Rated for 250 V, it utilizes a single-channel configuration with dimensions of 15 mm length and 17.5 mm height.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for AC power lines
• Supports through-hole PCB mounting for secure installation
• Utilizes nickel-zinc ferrite core material for effective filtering

Common Mode Chokes Applications

• AC line input filtering
• EMI suppression in power supplies
• Noise reduction in electronic equipment

Common Mode Chokes Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure accuracy. Confirm that the required electrical parameters, including inductance and current ratings, align with the design specifications. Check for compliance with relevant safety standards and environmental regulations before procurement.

Common Mode Chokes Selection Notes

Select this component when a 0.6 mH inductance and 2 A current rating are required for common mode noise suppression. Ensure the operating environment stays within the specified temperature range. Verify that the physical dimensions fit the available PCB space and that through-hole mounting is compatible with the assembly process.

Common Mode Chokes Part Context

This component belongs to the SC series of common mode chokes from KEMET. These components are engineered for general-purpose EMI filtering in AC power applications. The series offers various inductance values and current ratings to suit different circuit requirements while maintaining consistent mounting and performance characteristics.

Common Mode Chokes Replacement Considerations

Consult official substitution guides for verified alternatives. Ensure any replacement matches the inductance, current rating, and physical dimensions. Verify compatibility with existing PCB layouts and regulatory certifications.
