SC-02-090

Common Mode Chokes Overview

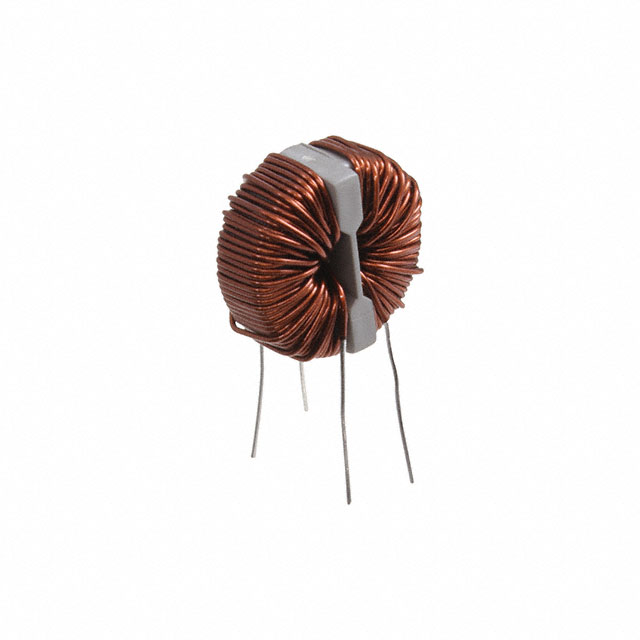

The KEMET SC-02-090 is a through-hole common mode filter from the SC Series, designed for AC line filtering applications. It features a nominal inductance of 9.4 mH and supports a maximum DC current rating of 2 A. The component exhibits a maximum DC resistance of 0.1 ohms and operates within a temperature range of -40°C to 105°C. Constructed with proprietary ferrite materials suitable for frequencies >=150 kHz, it provides effective noise suppression in electronic circuits requiring robust common mode choke performance.

Common Mode Chokes Feature Summary

• Provides common mode noise filtration for AC line applications
• Utilizes proprietary ferrite material optimized for high-frequency ranges
• Supports continuous DC current up to 2 A

Common Mode Chokes Applications

• AC line input filtering
• Common mode noise suppression in power supplies
• EMI reduction in electronic equipment

Common Mode Chokes Procurement Notes

Verify the specific datasheet version for the SC-02-090 to confirm exact physical dimensions and mounting requirements. Ensure the operating environment remains within the specified -40°C to 105°C range. Confirm that the 2 A current rating aligns with the circuit design parameters. Check for RoHS compliance status if required by project specifications. Validate supplier authenticity to prevent counterfeit components.

Common Mode Chokes Selection Notes

Select this component when a through-hole common mode choke with 9.4 mH inductance is required for AC line filtering. Consider the 2 A current rating and 0.1 ohm DC resistance for power loss calculations. Evaluate the -40°C to 105°C operating temperature range against environmental conditions. Compare with other SC Series variants if different inductance or current values are needed.

Common Mode Chokes Part Context

The SC-02-090 belongs to KEMET's SC Series of common mode coils, which are standard series components for EMI suppression. This series utilizes proprietary ferrite materials to achieve effective noise filtering in the >=150 kHz range. The SC Series offers various sizes and specifications to meet diverse electronic design requirements for common mode chokes.

Common Mode Chokes Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing PCB layouts and thermal constraints before considering alternative components.
