SC-02-100

Common Mode Chokes Overview

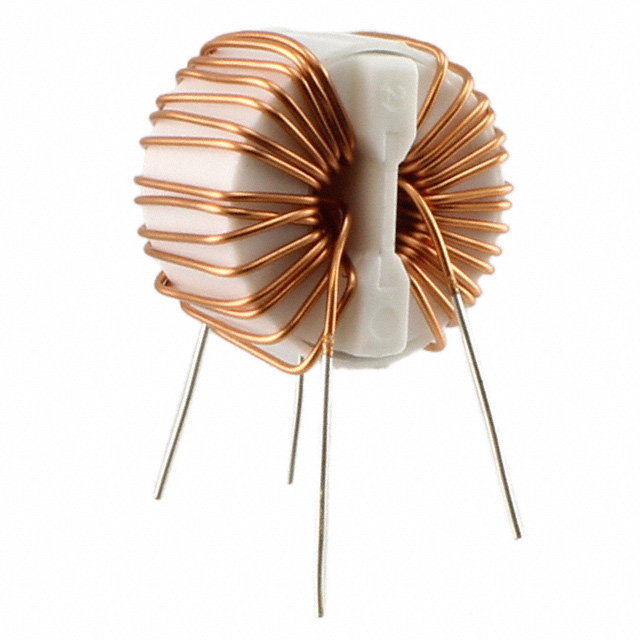

The KEMET SC-02-100 is a two-line common mode choke designed for through-hole PCB mounting. It provides an inductance of 1 mH at 100 kHz with a maximum DC current rating of 2 A and a maximum DC resistance of 110 mohms. The component operates within a temperature range of -25°C to +105°C, supports a rated voltage of 250 V AC, and features a vertical package with no base.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for power lines
• Designed for standard through-hole printed circuit board assembly
• Constructed with a vertical leaded package configuration

Common Mode Chokes Applications

• Power supply input filtering
• Electromagnetic interference suppression in electronic equipment
• Common mode noise reduction in AC/DC conversion stages

Common Mode Chokes Procurement Notes

Verify the manufacturer part number SC-02-100 against official KEMET documentation to confirm specifications. Ensure compatibility with required thermal ratings and mechanical footprint dimensions before integration into the design.

Common Mode Chokes Selection Notes

Select this component when a 1 mH inductance at 100 kHz is required for common mode applications. Confirm that the 2 A current rating and 110 mohms DCR meet the circuit requirements. Verify the through-hole mounting style fits the PCB layout constraints.

Common Mode Chokes Part Context

This component belongs to the KEMET SC series of common mode chokes. These components are engineered for electromagnetic compatibility solutions, offering reliable noise filtration for power line applications across various industrial and consumer electronics markets.
