SC-02-101

Common Mode Chokes Overview

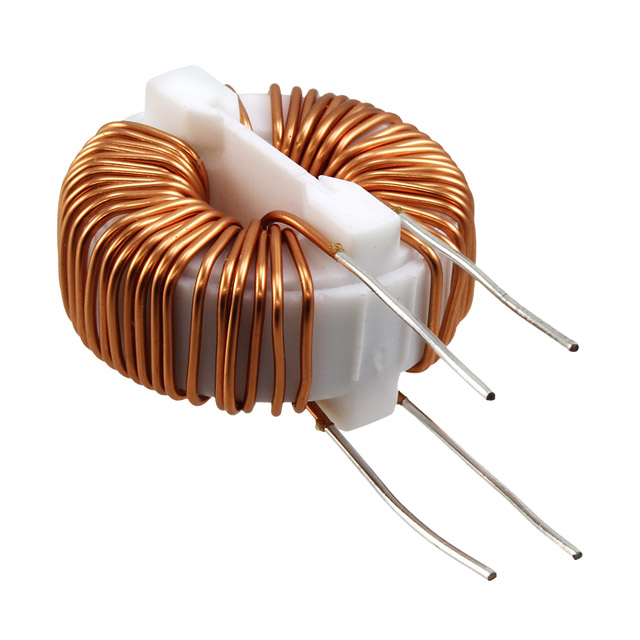

The KEMET SC-02-101 is a standard common mode filter designed for power line applications. It features a vertical, leaded package with four pins and no base. The component provides an inductance of 1 mH at 100 kHz and supports a maximum DC voltage of 250 V. It handles a rated current of 2 A with a maximum DC resistance of 110 milliohms. Operating temperatures range from -25°C to +105°C, with a maximum temperature rise of 40 K under load.

Common Mode Chokes Feature Summary

• Utilizes proprietary ferrite cores within a toroidal coil design for effective common mode noise suppression.
• Constructed as a standard power line filter suitable for two-line configurations.
• Features a through-hole mounting style with a vertical orientation and four-pin configuration.

Common Mode Chokes Applications

• Power line filtering
• Common mode noise suppression

Common Mode Chokes Procurement Notes

Verify the specific datasheet version to confirm compliance with RoHS directives and exact dimensional tolerances. Ensure that the operating environment remains within the specified -25°C to +105°C range to maintain performance integrity. Confirm that the required current does not exceed the 2 A rating to prevent excessive temperature rise beyond the 40 K limit.

Common Mode Chokes Selection Notes

Select this component when a through-hole common mode choke is required for power lines. It is appropriate for circuits needing 1 mH inductance at 100 kHz. Consider the physical dimensions of 23.00 mm diameter and 13.00 mm width for board layout. Verify compatibility with the 250 V DC rating and 2 A current capacity.

Common Mode Chokes Part Context

The SC series consists of common mode chokes utilizing proprietary ferrite cores. These toroidal coils offer various characteristics for different filtering needs. The SC-02-101 represents a standard variant within this family, focusing on general power line applications with defined electrical parameters.

Common Mode Chokes Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official KEMET resources for potential equivalents if necessary.
