SC-02-10G

Common Mode Chokes Overview

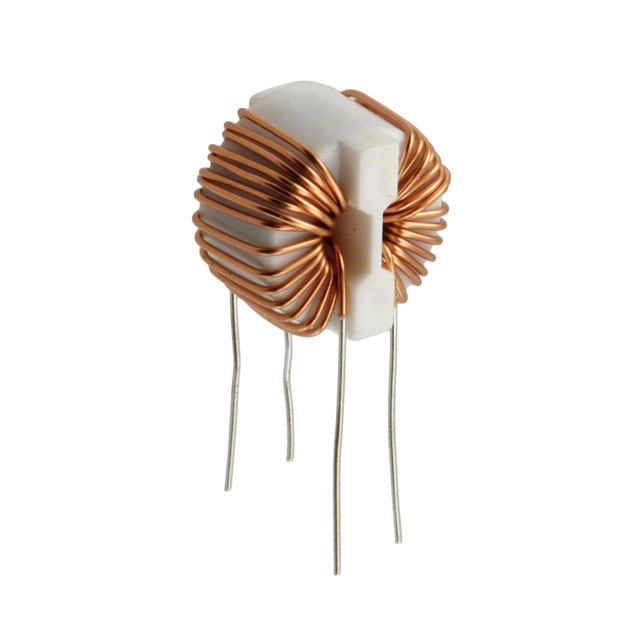

The KEMET SC-02-10G is a single-channel common mode choke designed for AC line filtering applications. It features a through-hole vertical mount configuration with a 250V voltage rating and a maximum DC current capacity of 2A. The component provides an inductance of 1mH (1,000 uH) measured at 100 kHz and exhibits a maximum DC resistance of 50 mOhms. It operates within a temperature range of -25°C to +105°C and belongs to the SC-G/GS series.

Common Mode Chokes Feature Summary

• Provides effective common mode noise suppression for AC power lines
• Supports high current handling up to 2A with low insertion loss
• Designed for reliable vertical PCB mounting via through-hole termination

Common Mode Chokes Applications

• AC line input filtering for electronic equipment
• EMI suppression in power supply circuits
• Common mode interference reduction in consumer electronics

Common Mode Chokes Procurement Notes

Verify the specific ordering suffix against official KEMET documentation to ensure correct tolerance and packaging specifications. Confirm that the required inductance value and current ratings align with the target circuit design before procurement. Cross-reference the manufacturer part number with authorized distributor listings to validate authenticity and availability status.

Common Mode Chokes Selection Notes

Select this component when a 1mH inductance value is required for 2A AC line applications. Ensure the PCB layout accommodates the vertical through-hole footprint and the specified lead spacing. Verify that the operating environment remains within the -25°C to +105°C temperature range to maintain performance integrity.

Common Mode Chokes Part Context

This component is part of the KEMET SC-G/GS series of common mode chokes. These components are engineered for general-purpose EMI filtering in AC power applications. The series offers various inductance values to suit different noise suppression requirements while maintaining consistent physical dimensions and mounting styles for design flexibility.

Common Mode Chokes Replacement Considerations

Check for direct substitutes within the SC-G/GS series or other KEMET common mode choke families. Ensure any replacement matches the 1mH inductance, 2A current rating, and 50 mOhm DCR specifications. Verify mechanical compatibility including lead pitch and mounting orientation.
