SC-02-10GS

Common Mode Chokes Overview

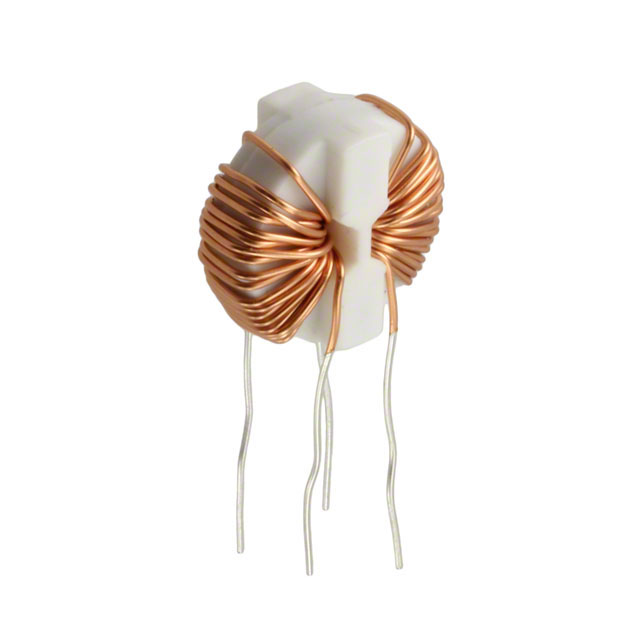

The KEMET SC-02-10GS is a through-hole common mode choke from the SC-G series. It features an inductance of 1 mH at 100 kHz and supports a maximum DC current of 2 A. The component has a maximum DC resistance of 80 mΩ and operates within a temperature range of -25°C to +105°C. Rated for 250 V, it utilizes a PCB mount installation style with standard through-hole termination.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for two-line circuits
• Designed for direct printed circuit board mounting via through-hole technology
• Constructed for operation in environments up to 105°C

Common Mode Chokes Applications

• Power supply input filtering
• Signal line noise suppression
• EMI reduction in electronic assemblies

Common Mode Chokes Procurement Notes

Verify the specific suffix GS against official KEMET documentation to confirm packaging and terminal specifications. Ensure the selected variant matches the required 1 mH inductance and 2 A current rating for the target application. Cross-reference the datasheet for precise dimensional tolerances and thermal limits before finalizing procurement orders.

Common Mode Chokes Selection Notes

Select this component when a 1 mH common mode choke is required for through-hole assembly. The 2 A current rating suits moderate power applications. Verify that the 80 mΩ DC resistance meets voltage drop constraints. Confirm compatibility with the operating temperature range of -25°C to +105°C for the intended environment.

Common Mode Chokes Part Context

This part belongs to the KEMET SC-G series of common mode chokes. These components are engineered for general-purpose EMI filtering in electronic circuits. The series offers standardized dimensions and electrical characteristics suitable for various industrial and commercial applications requiring reliable noise attenuation.

Common Mode Chokes Replacement Considerations

The SC-02-10G is a related variant within the same series. Verify pinout compatibility and exact inductance values before substitution. Consult official KEMET cross-reference guides for confirmed equivalent parts.
