SC-02-10J

Common Mode Chokes Overview

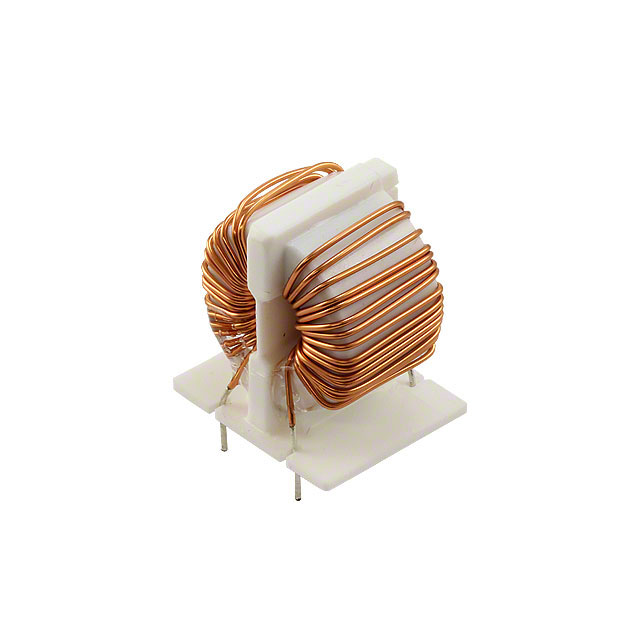

The KEMET SC-02-10J is a through-hole common mode choke from the SC-J series. It features an inductance of 1 mH and a maximum DC resistance of 100 milliohms. The component supports a maximum DC current of 2 A and operates within a temperature range of -25°C to +120°C. Rated for 250 VAC, it utilizes a vertical mounting style with four pins.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for AC line applications
• Designed for through-hole PCB mounting with vertical orientation
• Constructed for high thermal stability up to 120°C

Common Mode Chokes Applications

• AC power line filtering
• EMI suppression in electronic equipment
• Common mode noise reduction in power supplies

Common Mode Chokes Procurement Notes

Verify the manufacturer part number SC-02-10J against official KEMET documentation to confirm specifications. Ensure compatibility with required voltage ratings and current loads. Check RoHS compliance status if mandated by project requirements. Confirm package dimensions and pin configuration match the target PCB layout before procurement.

Common Mode Chokes Selection Notes

Select this component when a 1 mH inductance at 2 A is required for common mode filtering. Consider the 100 milliohm DCR for efficiency constraints. Verify that the 250 VAC rating meets circuit safety standards. Ensure the through-hole package fits the assembly process and available board space.

Common Mode Chokes Part Context

This component belongs to the KEMET SC-J series of common mode chokes. These devices are engineered for power line filtering applications. The series offers various inductance values and current ratings to suit different EMI suppression needs while maintaining consistent physical and electrical characteristics across the product line.

Common Mode Chokes Replacement Considerations

Public confirmed substitute part numbers are not provided in the source material.
