SC-02-200

Common Mode Chokes Overview

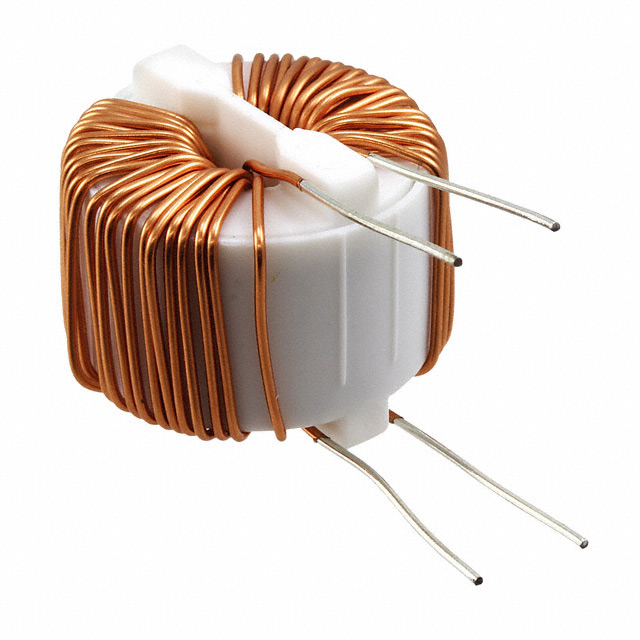

The KEMET SC-02-200 is a through-hole common mode choke filter designed for AC line applications. It features a single-channel configuration with an inductance of 2 mH and a maximum DC current rating of 2 A. The component operates within a voltage range up to 250 VAC and withstands temperatures from -25°C to +120°C. Its physical dimensions include a length of approximately 3.6 mm, a height of 14.5 mm, and a diameter of 17 mm, with an 8 mm lead spacing.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for AC power lines
• Supports high operating temperatures up to 120°C
• Designed for direct PCB mounting via through-hole termination

Common Mode Chokes Applications

• AC line filtering in electronic equipment
• Noise suppression in power supply inputs
• EMI reduction in consumer electronics

Common Mode Chokes Procurement Notes

Verify the specific manufacturer datasheet for the SC-02-200 to confirm exact electrical tolerances and mechanical drawings. Ensure the selected variant matches the required inductance and current ratings for the target circuit. Cross-reference official documentation to validate compliance with relevant safety standards before integration into final designs.

Common Mode Chokes Selection Notes

Select this component when a 2 mH inductance and 2 A current handling capability are required for common mode noise filtering. Consider the 120°C temperature rating for high-thermal environments. Verify that the through-hole package and 8 mm lead spacing fit the intended PCB layout constraints effectively.

Common Mode Chokes Part Context

This part belongs to the KEMET SC series of common mode chokes, which are engineered for robust performance in AC line filtering applications. The series offers various inductance values to suit different noise suppression requirements while maintaining consistent mechanical footprints and thermal characteristics across the product family.

Common Mode Chokes Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data.
