SC-02-20G

$1.78

Description：CMC 2MH 2A 2LN TH
Series：SC-G
Mfr：KEMET
Package：Bulk

SKU:c89a17e4ffb4 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SC-02-20G is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 2MH 2A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for SC-02-20G

Description：CMC 2MH 2A 2LN TH
Series：SC-G
Mfr：KEMET
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：2A
DC Resistance (DCR) (Max)：70mOhm
Voltage Rating - DC：250V
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.689" Dia x 0.551" W (17.50mm x 14.00mm)
Height (Max)：0.689" (17.50mm)
Package / Case：Vertical, No Base, 4 PC Pin
Inductance @ Frequency：2 mH @ 100 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for SC-02-20G

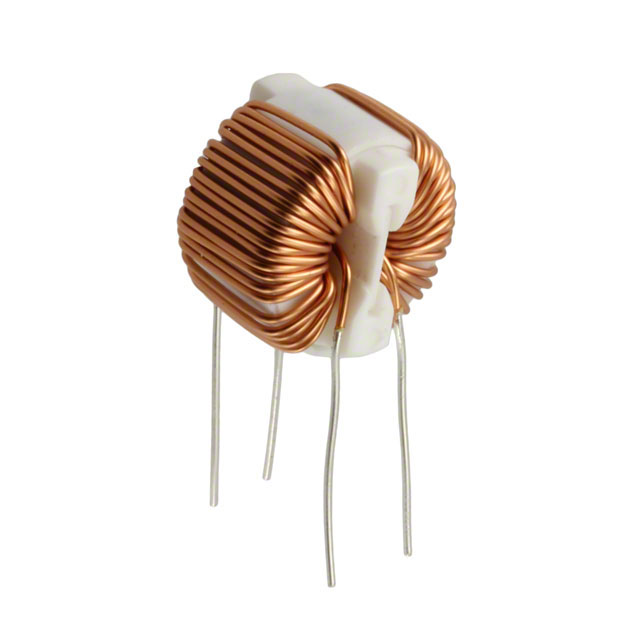

SC-02-20G

Common Mode Chokes Overview

The KEMET SC-02-20G is a through-hole common mode choke designed for AC line filtering applications. It operates within a voltage rating of 250V and supports a maximum DC current of 2A. The component provides an inductance of 2mH with a maximum DC resistance of 70 milliohms. It functions reliably across a temperature range from -40°C to +105°C. The unit utilizes a nickel-zinc ferrite core and meets UL 94 V-0 flammability standards.

Common Mode Chokes Feature Summary

Provides effective common mode noise suppression for AC line circuits
Utilizes nickel-zinc ferrite core material for stable performance
Designed for PCB mounting via through-hole termination

Common Mode Chokes Applications

AC power line EMI filtering
General purpose electronic equipment input stages
Industrial control system power supplies

Common Mode Chokes Procurement Notes

Verify the specific ordering suffix against official KEMET documentation to ensure correct packaging and tolerance specifications. Confirm that the required inductance value and current rating align with the target circuit design before procurement. Cross-reference the manufacturer part number with authorized distributor listings to validate authenticity and availability status.

Common Mode Chokes Selection Notes

Select this component when a 2mH inductance at 2A is required for common mode noise reduction. Ensure the operating environment stays within the specified -40°C to +105°C thermal limits. Verify that the through-hole footprint dimensions match the PCB layout requirements. Consider the 70 milliohm DC resistance impact on overall circuit efficiency during selection.

Common Mode Chokes Part Context

This component belongs to the SC-G/GS series of common mode chokes manufactured by KEMET. The series is engineered for general-purpose electromagnetic interference suppression in AC power applications. These components are characterized by their robust construction and compliance with standard safety certifications for electronic filters.
