SC-02-300J

$3.94

Description：CMC 30MH 2A 2LN TH
Series：SC-J
Mfr：KEMET
Package：Tray

SKU:b433cd461da3 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SC-02-300J is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 30MH 2A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for SC-02-300J

Description：CMC 30MH 2A 2LN TH
Series：SC-J
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：2A
DC Resistance (DCR) (Max)：300mOhm
Voltage Rating - DC：250V
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.299" L x 0.906" W (33.00mm x 23.00mm)
Height (Max)：1.299" (33.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：30 mH @ 1 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for SC-02-300J

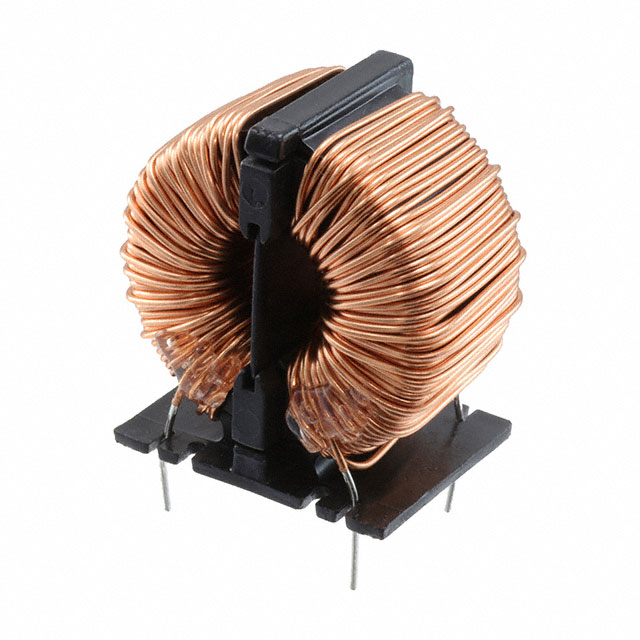

SC-02-300J

Common Mode Chokes Overview

The KEMET SC-02-300J is a through-hole common mode choke from the SC-J series, designed for electromagnetic interference suppression. It features a 30 mH inductance and supports a maximum DC current of 2 A with a maximum DC resistance of 0.3 ohms. The component operates within a temperature range of -40°C to +120°C and is rated for 250 VAC. It utilizes proprietary ferrite cores in a toroidal configuration.

Common Mode Chokes Feature Summary

Utilizes proprietary ferrite cores in a toroidal configuration for effective noise suppression
Designed for high reliability and stable electromagnetic compatibility performance
Supports through-hole PCB mounting for secure installation

Common Mode Chokes Applications

Audiovisual equipment
Office automation machinery
Industrial machinery
Digital home appliances
Power supply units

Common Mode Chokes Procurement Notes

Verify the specific part number SC-02-300J against official KEMET documentation to confirm electrical ratings and physical dimensions. Ensure the procurement source provides valid RoHS compliance data and original manufacturer certification. Cross-reference technical specifications with the latest datasheet to avoid discrepancies in inductance or current ratings during integration.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring common mode noise filtering for AC lines up to 250V. The 2A current rating and 30mH inductance make it suitable for general-purpose EMI suppression in consumer electronics and industrial control systems. Verify that the through-hole package fits the target PCB layout constraints.

Common Mode Chokes Part Context

The SC-02-300J belongs to the KEMET SC-J series of common mode chokes. This series is characterized by the use of proprietary ferrite materials and toroidal winding techniques. These components are engineered to provide consistent performance across a wide range of frequencies, ensuring effective attenuation of common mode noise in sensitive electronic applications.

Common Mode Chokes Replacement Considerations

Consult official KEMET substitution guides for verified equivalents. Do not assume cross-compatibility with other manufacturers' toroidal chokes without verifying inductance, current rating, and physical footprint alignment.
