SC-02-300JV

Common Mode Chokes Overview

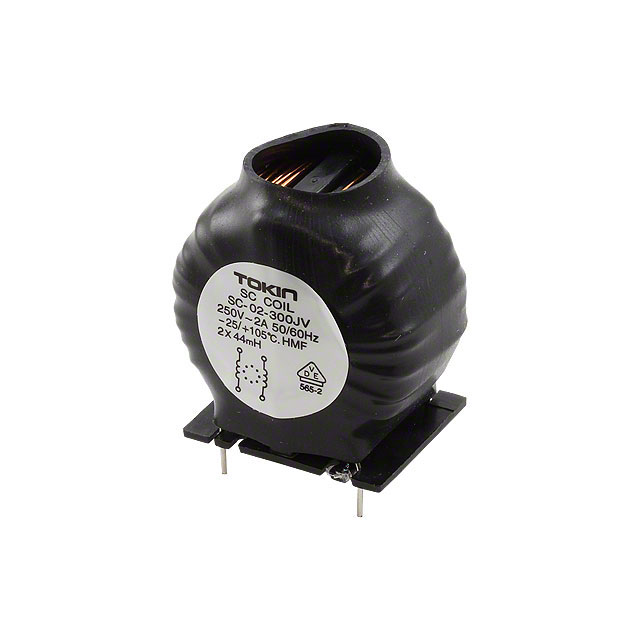

The KEMET SC-02-300JV is a through-hole common mode choke filter designed for PCB mounting. It features an inductance of 44 mH and supports a maximum DC current of 2 A. The component has a maximum DC resistance of 300 mohms and operates within a temperature range of -25°C to +120°C. Rated for 250 VAC, it utilizes a single-channel configuration with a vertical mount style.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for differential signal lines
• Supports high thermal stability up to 120°C operating temperature
• Designed for robust through-hole PCB integration

Common Mode Chokes Applications

• Power supply input filtering
• EMI suppression in AC line circuits
• Noise reduction in industrial control systems

Common Mode Chokes Procurement Notes

Verify the specific suffix 'J' against the manufacturer's latest datasheet to confirm tolerance and material specifications. Ensure the 44 mH inductance value aligns with design requirements, as some listings may reference similar variants with different values. Confirm RoHS compliance status directly from official documentation before procurement.

Common Mode Chokes Selection Notes

Select this component when a higher inductance value than the standard SC-02-300J is required for enhanced low-frequency noise attenuation. The 2 A current rating suits moderate power applications. Verify that the 300 mohms DCR meets voltage drop constraints in the target circuit design.

Common Mode Chokes Part Context

This part belongs to the SC-J series of common mode chokes from KEMET. It shares the same physical footprint and mounting style as other members in the series but differs in electrical characteristics such as inductance and current handling capabilities.

Common Mode Chokes Replacement Considerations

The SC-02-300J is a related variant with 30 mH inductance. Substitution requires verification that the lower inductance meets EMI performance needs. No direct cross-model substitutes are confirmed in public data.
