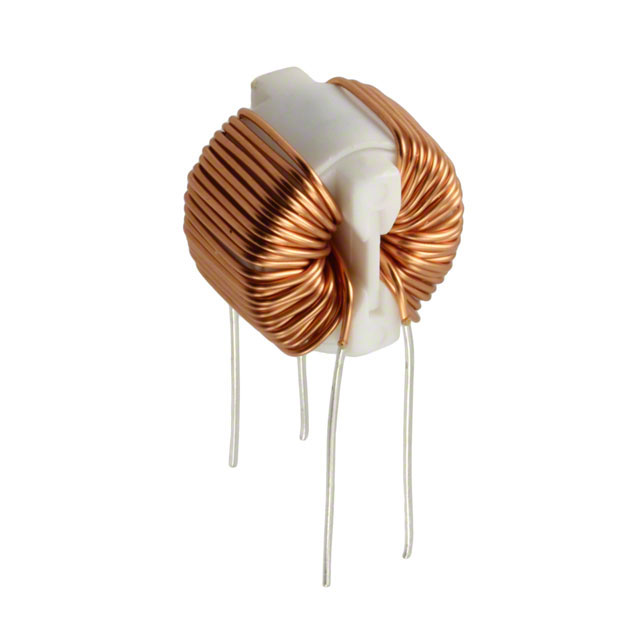

SC-02-30G is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 3MH 2A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for SC-02-30G
- Description：CMC 3MH 2A 2LN TH
- Series：SC-G
- Mfr：KEMET
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：2A
- DC Resistance (DCR) (Max)：85mOhm
- Voltage Rating - DC：250V
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.689" Dia x 0.551" W (17.50mm x 14.00mm)
- Height (Max)：0.689" (17.50mm)
- Package / Case：Vertical, No Base, 4 PC Pin
- Inductance @ Frequency：3 mH @ 100 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for SC-02-30G
Common Mode Chokes Overview
The KEMET SC-02-30G is a through-hole common mode choke designed for AC line filtering applications. It features an inductance of 3 mH and supports a maximum DC current of 2 A with a maximum DC resistance of 85 mOhms. Rated for 250 V, the component operates within a temperature range of -40 °C to +105 °C. The device utilizes ferrite core material and is available in tray packaging.
Common Mode Chokes Feature Summary
- Provides common mode noise suppression for AC power lines
- Utilizes ferrite core construction for effective filtering
- Designed for through-hole PCB mounting
Common Mode Chokes Applications
- AC line filtering in utility metering systems
- Noise suppression in gas and water meter infrastructure
- Power supply input stages requiring common mode chokes
Common Mode Chokes Procurement Notes
Verify the specific series designation (SC-G) against project requirements. Confirm that the operating temperature range of -40 °C to +105 °C aligns with environmental conditions. Ensure the 2 A current rating meets circuit load demands. Check for RoHS compliance status as indicated in official documentation before finalizing procurement.
Common Mode Chokes Selection Notes
Select this component when a 3 mH inductance value is required for common mode interference reduction. The 2 A current handling capability suits moderate power applications. Consider the physical dimensions and through-hole termination style for PCB layout compatibility. Verify voltage ratings match the system's AC line specifications.
Common Mode Chokes Part Context
This part belongs to the SC-G series of common mode chokes from KEMET. These components are engineered for general AC line filtering tasks. The series offers various inductance values tailored for different noise suppression needs. The SC-02-30G specifically targets applications requiring robust performance in utility and industrial environments.
Common Mode Chokes Replacement Considerations
The SC-02-30J is a related variant within the SC-J series offering higher inductance. Cross-reference electrical parameters such as inductance and current rating when evaluating substitutes. Ensure mechanical fit and thermal characteristics remain compatible with the existing design.
Common Mode Chokes FAQ
What is the core material used in the SC-02-30G?
The SC-02-30G uses ferrite core material.
What is the maximum DC current rating?
The maximum DC current rating is 2 A.
