SC-02-500

Common Mode Chokes Overview

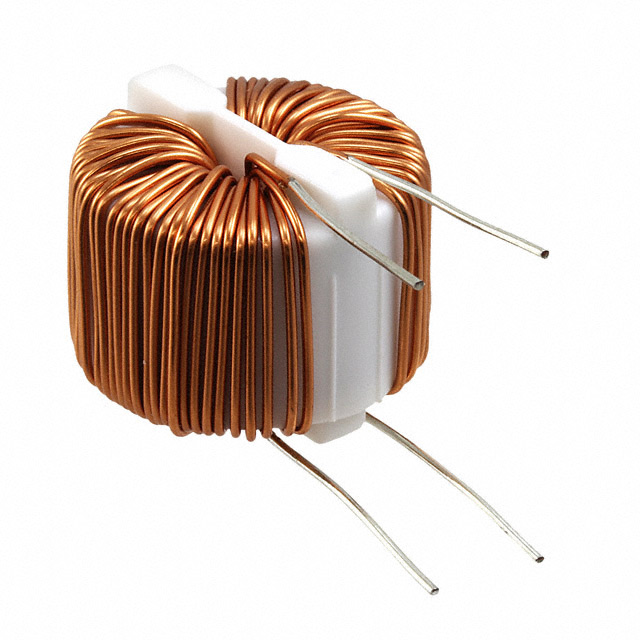

The KEMET SC-02-500 is a single-channel common mode choke filter designed for through-hole PCB mounting. It features an inductance of 5 mH and supports a maximum DC current of 2 A. The component has a maximum DC resistance of 100 mΩ and operates within a temperature range of -25 °C to +120 °C. Rated for 250 VAC, it utilizes a ferrite core and measures 7 mm in length, 23 mm in width, and 33 mm in height.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for signal and power lines
• Utilizes a ferrite core for effective high-frequency interference attenuation
• Designed for reliable through-hole PCB integration

Common Mode Chokes Applications

• Electromagnetic interference filtering in industrial control systems
• Noise reduction in automotive electronic circuits
• Signal integrity protection in telecommunications equipment

Common Mode Chokes Procurement Notes

Verify the specific datasheet version to confirm exact dimensional tolerances and thermal characteristics. Ensure the selected variant matches the required voltage rating and current handling capacity for the target application environment. Cross-reference manufacturer documentation for compliance certifications such as RoHS status before finalizing procurement specifications.

Common Mode Chokes Selection Notes

Select this component when a 5 mH inductance value is required for common mode noise suppression at 2 A current levels. Consider the 100 mΩ DC resistance impact on circuit efficiency. Evaluate the operating temperature range against environmental conditions. Compare physical dimensions with available PCB real estate to ensure proper mechanical fit during assembly.

Common Mode Chokes Part Context

The SC-02-500 belongs to KEMET's SC series of common mode chokes. This series offers various inductance values tailored for different filtering requirements. The component serves as a passive electromagnetic compatibility solution, helping to mitigate conducted emissions in electronic assemblies requiring robust noise immunity.

Common Mode Chokes Replacement Considerations

SC-02-500J is a documented alternative within the same product family offering similar electrical characteristics.
