SC-02-50J

Common Mode Chokes Overview

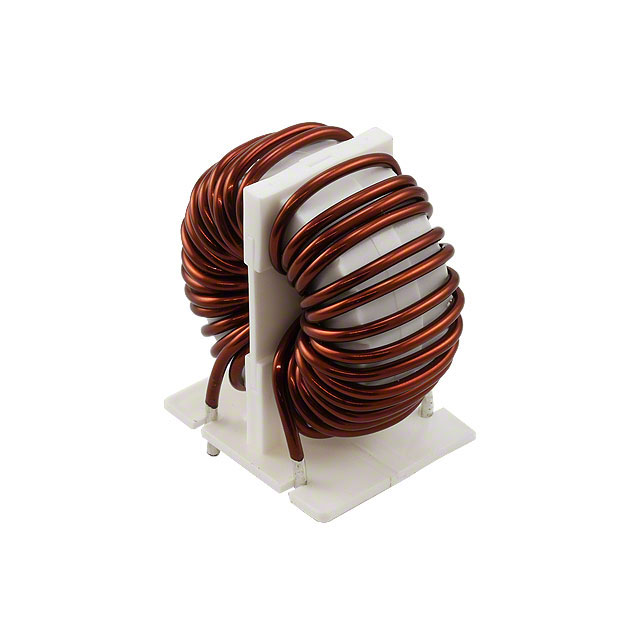

The KEMET SC-02-50J is a through-hole common mode choke filter designed for PCB mounting. It features an inductance of 5 mH at 100 kHz and supports a maximum DC current of 2 A. The component has a maximum DC resistance of 120 milliohms and operates within a temperature range of -40 °C to +125 °C.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for differential signal lines
• Utilizes a robust through-hole construction for secure PCB attachment
• Engineered to handle continuous direct current loads up to 2 amperes

Common Mode Chokes Applications

• Signal line filtering in electronic circuits
• Noise suppression in data transmission interfaces
• EMI reduction in power supply input stages

Common Mode Chokes Procurement Notes

Verify the specific inductance tolerance and DC resistance values against the official manufacturer datasheet prior to integration. Confirm that the operating temperature range meets the environmental requirements of the final assembly. Ensure the through-hole footprint dimensions align with the printed circuit board layout specifications to guarantee proper mechanical fit and electrical performance.

Common Mode Chokes Selection Notes

Select this component when a 5 mH inductance value is required for common mode noise attenuation. The 2 A current rating suits applications with moderate signal or power line currents. Consider the physical size and through-hole mounting style if surface mount options are unsuitable for the mechanical constraints of the design.

Common Mode Chokes Part Context

This component belongs to the SC series of common mode chokes manufactured by KEMET. These devices are passive electromagnetic components used to suppress unwanted high-frequency noise while allowing desired signals to pass. The series offers various inductance values tailored for different filtering requirements in consumer and industrial electronics.

Common Mode Chokes Replacement Considerations

The SC-02-300J is a related variant within the same series offering higher inductance. Verify compatibility based on specific inductance needs and current handling capabilities before substitution.
