SC-02-800

$3.48

Description：CMC 8MH 2A 2LN TH
Series：SC
Mfr：KEMET
Package：Bulk

SKU:d478ea3e976c Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SC-02-800 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 8MH 2A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for SC-02-800

Description：CMC 8MH 2A 2LN TH
Series：SC
Mfr：KEMET
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：2A
DC Resistance (DCR) (Max)：150mOhm
Voltage Rating - DC：250V
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.339" Dia x 0.906" W (34.00mm x 23.00mm)
Height (Max)：1.339" (34.00mm)
Package / Case：Vertical, No Base, 4 PC Pin
Inductance @ Frequency：8 mH @ 100 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for SC-02-800

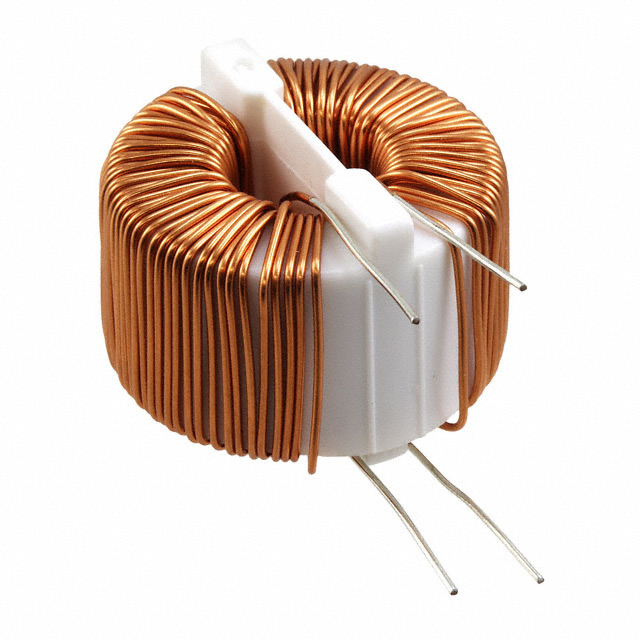

SC-02-800

Common Mode Chokes Overview

The KEMET SC-02-800 is a through-hole common mode choke belonging to the SC series. It features an inductance of 8 mH and supports a maximum DC current of 2 A. The component has a maximum DC resistance of 150 mOhms and operates within a temperature range of -25 °C to +120 °C. Designed for PCB mounting, it utilizes wire-wound construction with a 250 VAC rating.

Common Mode Chokes Feature Summary

Provides common mode noise suppression for AC line applications
Utilizes wire-wound construction for high reliability
Supports through-hole PCB mounting

Common Mode Chokes Applications

AC line filtering
EMI suppression circuits
Power supply input stages

Common Mode Chokes Procurement Notes

Verify the specific manufacturer part number against official KEMET documentation to confirm electrical parameters such as inductance and current ratings. Ensure the procurement channel provides valid traceability and compliance certificates matching the original manufacturing specifications.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring 8 mH common mode inductance at 2 A continuous current. Confirm that the physical dimensions and lead spacing are compatible with the target PCB layout and that the operating temperature range meets the environmental requirements.

Common Mode Chokes Part Context

This component is part of the KEMET SC series of common mode chokes. These components are designed for electromagnetic interference (EMI) filtering in electronic equipment. The series offers various inductance values and current ratings to suit different power line protection needs.
