SC-02-E620H

Common Mode Chokes Overview

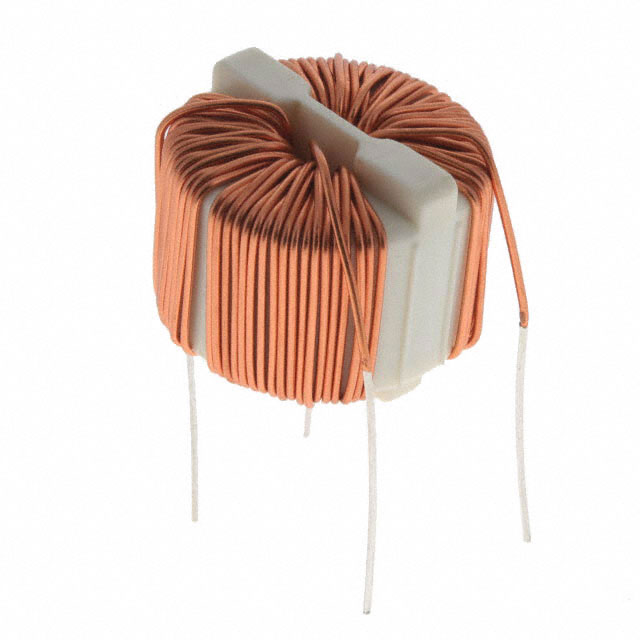

The KEMET SC-02-E620H is a common mode filter featuring an inductance of 6.2 mH and a DC current rating of 2 A. It has a maximum DC resistance of 0.18 ohms and operates within a temperature range of -40°C to high limits.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression
• Supports continuous DC current up to 2 A
• Operates reliably in low temperatures down to -40°C

Common Mode Chokes Applications

• Power supply input filtering
• EMI suppression in electronic circuits
• Signal line protection against common mode interference

Common Mode Chokes Procurement Notes

Verify the exact operating temperature upper limit and physical dimensions against the official datasheet before procurement, as these details are not fully specified in the provided summary data. Ensure the component meets specific EMI requirements for the target application.

Common Mode Chokes Selection Notes

Select this component when a 6.2 mH inductance and 2 A current handling capability are required for common mode noise reduction. Consider the 0.18 ohm DC resistance impact on voltage drop and power loss in the circuit design phase.

Common Mode Chokes Part Context

This component belongs to KEMET's passive filter series, designed for electromagnetic interference mitigation. It utilizes magnetic core technology to attenuate unwanted high-frequency noise while allowing desired signals or power to pass with minimal attenuation.

Common Mode Chokes Replacement Considerations

Check for compatible common mode chokes with identical 6.2 mH inductance and 2 A rating from other manufacturers if this part is unavailable. Ensure pinout and mounting style compatibility for direct replacement.
