SC-03-05GS

$2.53

Description：CMC 500UH 3A 2LN TH
Series：SC-GS
Mfr：KEMET
Package：Bulk

SKU:a614bb16125e Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SC-03-05GS is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 500UH 3A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for SC-03-05GS

Description：CMC 500UH 3A 2LN TH
Series：SC-GS
Mfr：KEMET
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：3A
DC Resistance (DCR) (Max)：45mOhm
Voltage Rating - DC：250V
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.591" Dia x 0.335" W (15.00mm x 8.50mm)
Height (Max)：0.591" (15.00mm)
Package / Case：Vertical, No Base, 4 PC Pin
Inductance @ Frequency：500 µH @ 100 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for SC-03-05GS

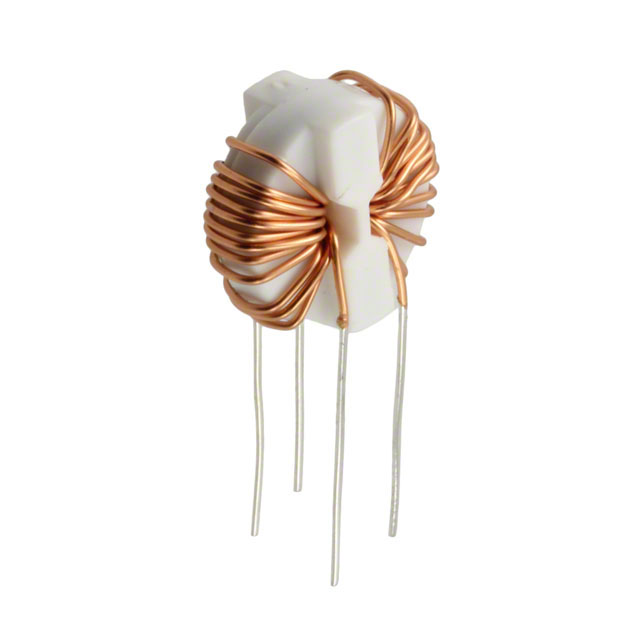

SC-03-05GS

Common Mode Chokes Overview

The KEMET SC-03-05GS is a through-hole common mode choke from the SC-G/GS series. It features an inductance of 500 µH and supports a maximum DC current of 3 A. The component has a maximum DC resistance of 45 mΩ and operates within a temperature range of -25°C to +105°C. Rated for 250 V, it utilizes a nickel-zinc ferrite core and meets UL 94 V-0 flammability standards.

Common Mode Chokes Feature Summary

Provides common mode noise suppression for power lines
Utilizes nickel-zinc ferrite core material for high-frequency performance
Designed for PCB mount via through-hole termination

Common Mode Chokes Applications

Power supply input filtering
EMI suppression in AC/DC converters
Noise reduction in industrial control circuits

Common Mode Chokes Procurement Notes

Verify the specific suffix GS against the manufacturer datasheet to confirm exact electrical tolerances and packaging details. Ensure the ordering information matches the required lead time and availability status directly from authorized KEMET channels or certified distributors.

Common Mode Chokes Selection Notes

Select this component when a 500 µH inductance at 3 A is required for common mode interference mitigation. Consider the 45 mΩ DCR and thermal limits for circuit efficiency. Verify that the through-hole package fits the target PCB layout constraints.

Common Mode Chokes Part Context

This part belongs to the KEMET SC-G/GS series of common mode chokes. These components are engineered for general-purpose EMI filtering applications where robust through-hole mounting and specific current ratings are necessary for reliable operation in power electronics.

Common Mode Chokes Replacement Considerations

Check for direct substitutes with identical 500 µH inductance and 3 A rating. Verify pin compatibility and physical dimensions before replacing to ensure mechanical fit and electrical equivalence in the existing design.
