SC-03-06G

Common Mode Chokes Overview

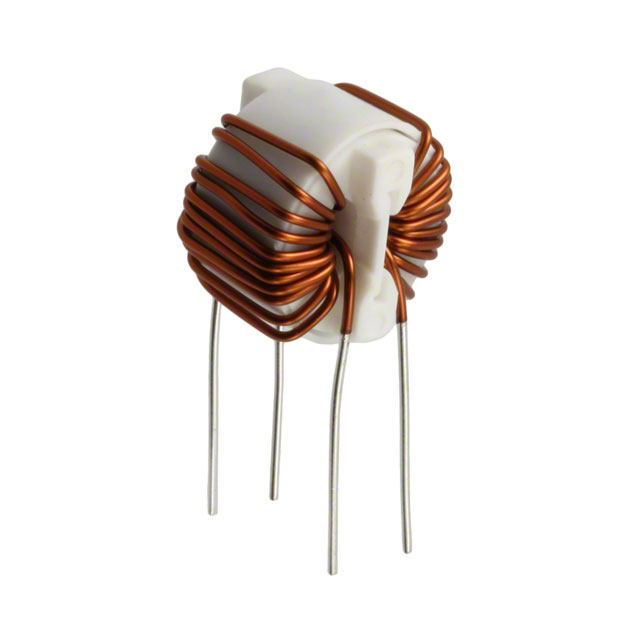

The KEMET SC-03-06G is a through-hole common mode choke belonging to the SC-G/GS series. It provides an inductance of 600 µH at 100 kHz with a maximum DC current rating of 3 A and a maximum DC resistance of 30 mOhms. The component supports a voltage rating of 250 V AC/DC and operates within a temperature range of -40°C to +105°C.

Common Mode Chokes Feature Summary

• Through-hole mounting for secure PCB integration
• High saturation current capability for power line filtering
• Wide operating temperature range for industrial environments

Common Mode Chokes Applications

• Power supply input filtering
• EMI suppression in industrial equipment
• AC line noise reduction

Common Mode Chokes Procurement Notes

Verify the specific part number against official KEMET documentation to confirm electrical parameters and physical dimensions. Ensure compatibility with existing PCB footprints and thermal management requirements before procurement.

Common Mode Chokes Selection Notes

Select this component when high current handling and robust mechanical mounting are required. Compare inductance values and DC resistance against circuit specifications to ensure effective noise attenuation without excessive voltage drop.

Common Mode Chokes Part Context

This component is part of KEMET's SC-G/GS series of common mode chokes designed for power applications. It utilizes a toroidal core structure optimized for high current performance and low insertion loss in EMI filter circuits.

Common Mode Chokes Replacement Considerations

Check for direct substitutes such as the SC-03-05GS, noting differences in inductance (500 µH vs 600 µH) and DC resistance (45 mOhms vs 30 mOhms). Verify that alternative components meet the same current and voltage ratings.
