SC-03-10G

Common Mode Chokes Overview

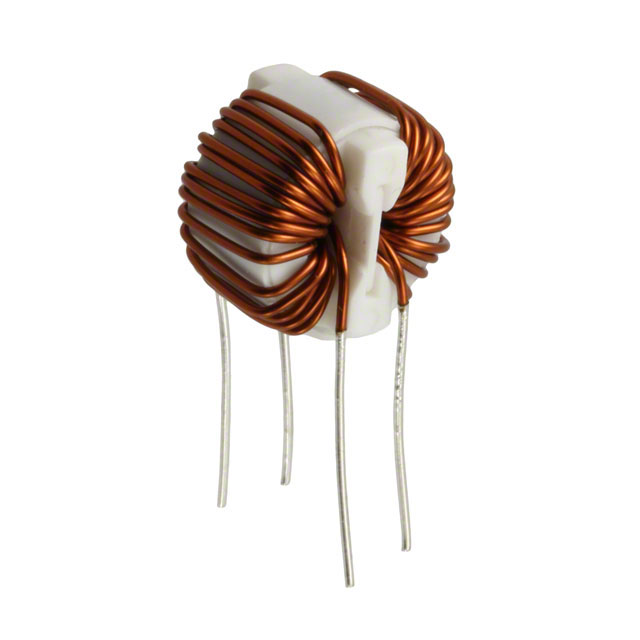

The KEMET SC-03-10G is a through-hole common mode choke belonging to the SC-G/GS series. It features an inductance of 1 mH at 100 kHz and supports a maximum DC current of 3 A. The component has a minimum DC resistance of 35 mΩ and operates within a temperature range of -40 °C to +105 °C. Rated for 250 V AC/DC, it utilizes a vertical mount style with two lines.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for dual-line circuits
• Designed for vertical printed circuit board mounting
• Constructed for high current handling capabilities

Common Mode Chokes Applications

• Power supply input filtering
• Data line noise reduction
• Electromagnetic interference suppression in utility meters

Common Mode Chokes Procurement Notes

Verify the specific manufacturer part number against official KEMET documentation to ensure compatibility with design requirements. Confirm that the through-hole package dimensions and pin spacing match the target PCB layout. Check for any recent revisions to the datasheet regarding electrical characteristics or environmental ratings before finalizing procurement decisions.

Common Mode Chokes Selection Notes

Select this component when dual-line common mode filtering is required for applications involving currents up to 3 A. Ensure the operating environment stays within the specified -40 °C to +105 °C range. Verify that the 1 mH inductance value meets the noise attenuation needs at the target frequency of 100 kHz.

Common Mode Chokes Part Context

This component is part of the SC-G/GS series of common mode chokes manufactured by KEMET Corporation. These devices are engineered for general-purpose electromagnetic interference suppression in electronic circuits requiring robust performance under varying thermal conditions.

Common Mode Chokes Replacement Considerations

Consult official KEMET substitution guides for verified alternatives. Cross-reference inductance, current rating, and physical dimensions to ensure functional equivalence without modifying the existing circuit design.
