SC-03-10GJ

Common Mode Chokes Overview

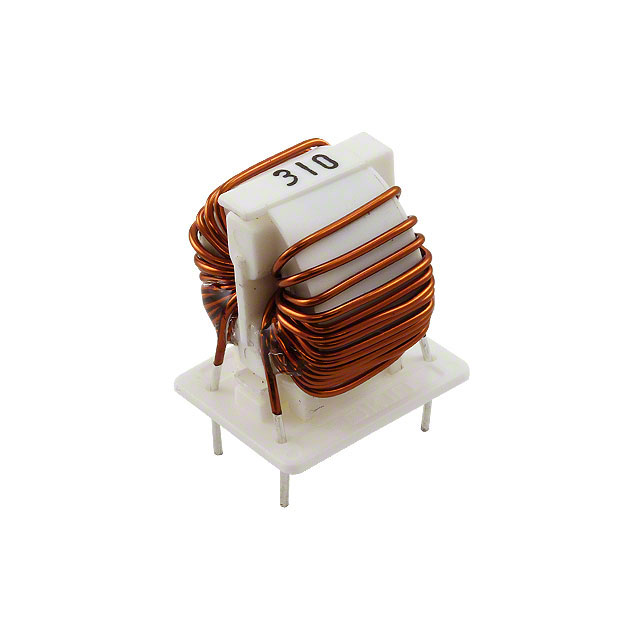

The KEMET SC-03-10GJ is a through-hole common mode choke designed for AC line filtering applications. It features an inductance of 1 mH and supports a current rating of 3 A with a maximum DC resistance of 0.04 ohms. The component operates within a temperature range up to 120°C and complies with RoHS standards, ensuring it contains no SVHC substances as of February 4, 2026.

Common Mode Chokes Feature Summary

• Provides effective common mode noise suppression for AC power lines
• Constructed with robust materials suitable for high-temperature environments
• Complies with environmental safety standards including RoHS

Common Mode Chokes Applications

• AC power input filtering in electronic equipment
• Noise reduction in mains-powered circuits
• EMI suppression in consumer electronics

Common Mode Chokes Procurement Notes

Verify the specific part number SC-03-10GJ against official KEMET documentation to confirm technical specifications. Ensure compatibility with required current ratings and thermal limits. Check for RoHS compliance status relevant to your region. Confirm package dimensions match PCB layout requirements before ordering.

Common Mode Chokes Selection Notes

Select this component when 1 mH inductance and 3 A current handling are required for common mode noise attenuation. Consider the 0.04 ohm DC resistance impact on voltage drop. Evaluate the 120°C operating temperature limit against ambient conditions. Verify physical footprint constraints fit the design space.

Common Mode Chokes Part Context

This component belongs to the KEMET SC-GJ series of AC line filters. These chokes are engineered for general-purpose EMI suppression in AC mains applications. The series offers standardized inductance values and current ratings for common power line filtering needs.

Common Mode Chokes Replacement Considerations

Public confirmed substitute part numbers: UALSC0310GJ000.
