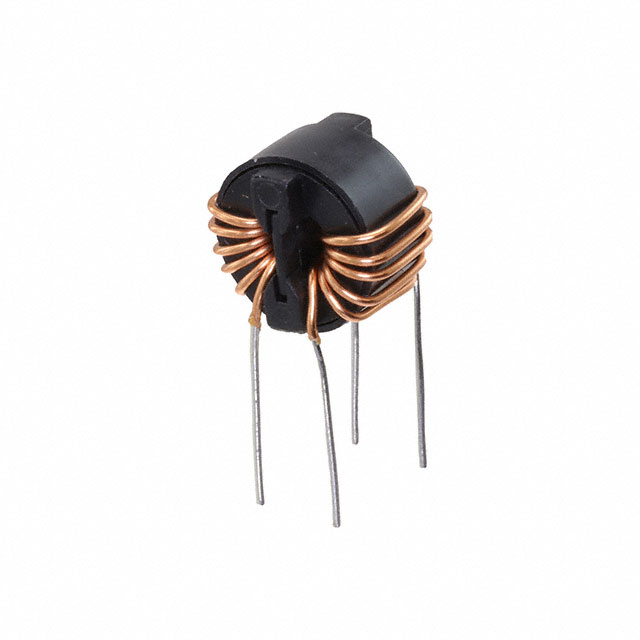

SC-03-E016G is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 163.8UH 3A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for SC-03-E016G
- Description：CMC 163.8UH 3A 2LN TH
- Series：SC-G
- Mfr：KEMET
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：3A
- DC Resistance (DCR) (Max)：8.51mOhm
- Voltage Rating - DC：250V
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.689" L x 0.551" W (17.50mm x 14.00mm)
- Height (Max)：0.669" (17.00mm)
- Package / Case：Vertical, No Base, 4 PC Pin
- Inductance @ Frequency：163.8 µH @ 10 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for SC-03-E016G
Common Mode Chokes Overview
The KEMET SC-03-E016G is a common mode choke filter designed for AC line applications. It features an inductance of 163.8 µH and supports a maximum DC current of 3 A. The component has a maximum DC resistance of 8.51 mΩ. It operates within a temperature range from -40°C to +105°C. The device utilizes proprietary 10H ferrite material suitable for frequencies ≥ 150 kHz.
Common Mode Chokes Feature Summary
- Utilizes proprietary 10H ferrite material for effective noise suppression
- Designed for AC line filtering applications
- Suitable for frequency ranges greater than or equal to 150 kHz
Common Mode Chokes Applications
- AC line filtering
- Common mode noise suppression
- Electromagnetic interference (EMI) reduction in power circuits
Common Mode Chokes Procurement Notes
Verify the specific part number SC-03-E016G against official KEMET documentation to confirm electrical parameters such as inductance and current rating. Ensure compatibility with operating temperature requirements ranging from -40°C to +105°C. Confirm package style and mounting type match design specifications before procurement.
Common Mode Chokes Selection Notes
Select this component when designing circuits requiring common mode chokes for AC lines with currents up to 3 A. Consider the 163.8 µH inductance value for filtering needs above 150 kHz. Evaluate thermal performance within the specified -40°C to +105°C range to ensure reliability under operational conditions.
Common Mode Chokes Part Context
The SC-03 series represents KEMET's line of common mode chokes. These components are engineered for EMI suppression in power supply inputs. The SC-03-E016G variant specifically offers 163.8 µH inductance, balancing size and performance for general AC line filtering tasks in electronic equipment.
Common Mode Chokes Replacement Considerations
Public confirmed substitute part numbers are not available in the provided source data. Consult KEMET technical support or authorized distributors for verified equivalents that match the 163.8 µH inductance and 3 A current rating specifications.
