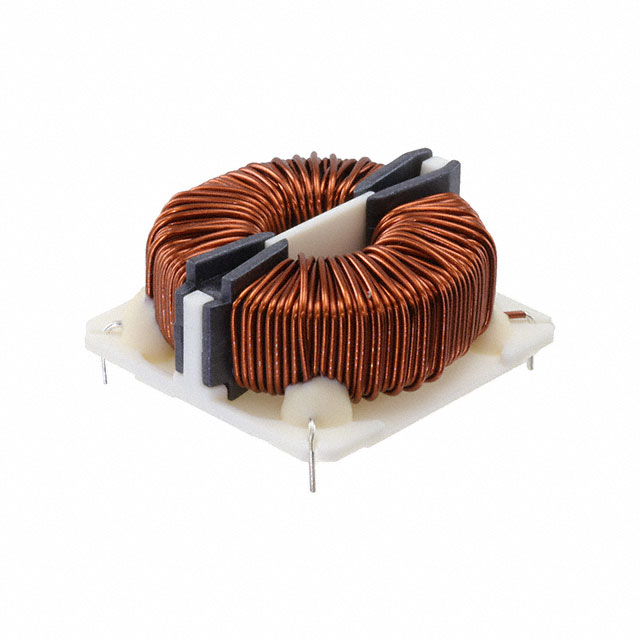

SC-030-E150JH-P is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 15MH 3A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for SC-030-E150JH-P
- Description：CMC 15MH 3A 2LN TH
- Series：SC-JH
- Mfr：KEMET
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：3A
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：250V
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.260" L x 1.220" W (32.00mm x 31.00mm)
- Height (Max)：0.571" (14.50mm)
- Package / Case：Horizontal, 2 PC Pin
- Inductance @ Frequency：15 mH @ 10 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for SC-030-E150JH-P
Common Mode Chokes Overview
The KEMET SC-030-E150JH-P is a through-hole common mode choke designed for AC line filtering. It features an inductance of 15 mH and supports a maximum current of 3 A. The component has a maximum DC resistance of 160 mOhms and operates within a temperature range of -25°C to +120°C. Rated for 250 VAC, it utilizes vertical wire termination for PCB mounting.
Common Mode Chokes Feature Summary
- Provides effective EMI suppression and noise reduction for AC power lines
- Designed for interference suppression in consumer electronics and industrial equipment
- Utilizes vertical wire termination for reliable through-hole PCB integration
Common Mode Chokes Applications
- Power line filtering in consumer electronics
- EMI suppression in industrial equipment
- Noise reduction in communication systems
Common Mode Chokes Procurement Notes
Verify the complete part number including suffixes against official KEMET documentation to ensure correct specifications. Confirm RoHS compliance status and lead-free characteristics as required by your manufacturing standards. Cross-reference datasheet parameters such as inductance tolerance and thermal ratings with your design requirements before finalizing procurement decisions.
Common Mode Chokes Selection Notes
Select this component when designing circuits requiring 15 mH common mode chokes for 3 A applications. Ensure the operating environment stays within the specified -25°C to +120°C range. Verify that the 160 mOhm DCR meets your power loss constraints and that the 250 VAC rating aligns with your system voltage levels.
Common Mode Chokes Part Context
This component belongs to the KEMET SC series of common mode chokes. These devices are engineered for AC line filtering applications where high current handling and significant inductance are necessary. The series offers robust performance for suppressing electromagnetic interference in various electronic systems.
Common Mode Chokes Replacement Considerations
Consult official KEMET substitution guides for verified alternatives. Ensure any replacement matches the 15 mH inductance, 3 A current rating, and 160 mOhm DCR specifications. Verify physical footprint compatibility for through-hole mounting.
