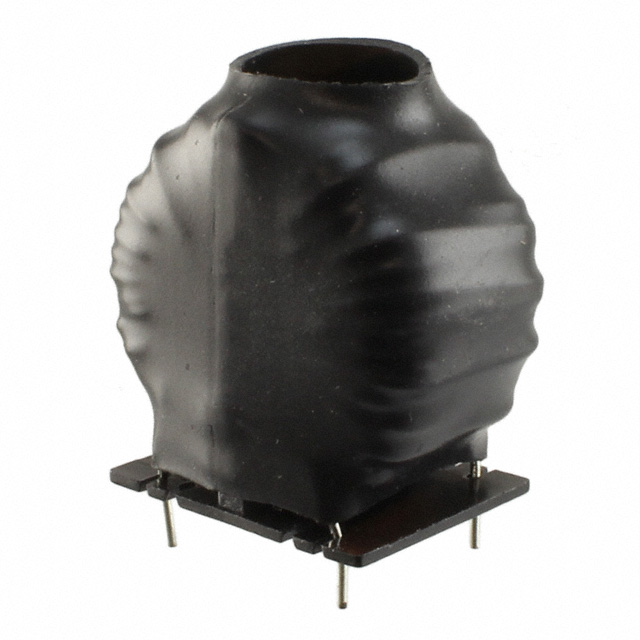

SC-04-200JV

$4.64

Description：CMC 29MH 5A 2LN TH
Series：SC-JV
Mfr：KEMET
Package：Bulk

SKU:c2b732755d75 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SC-04-200JV is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 29MH 5A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for SC-04-200JV

Description：CMC 29MH 5A 2LN TH
Series：SC-JV
Mfr：KEMET
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：5A
DC Resistance (DCR) (Max)：100mOhm
Voltage Rating - DC：250V
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.378" Dia x 0.984" W (35.00mm x 25.00mm)
Height (Max)：1.575" (40.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：29 mH @ 16 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for SC-04-200JV

SC-04-200JV

Common Mode Chokes Overview

The KEMET SC-04-200JV is a through-hole common mode choke filter designed for AC line applications. It features an inductance of 29 mH and supports a maximum DC current of 5 A with a DCR of 100 mOhms. Rated for 250 VAC, it operates within a temperature range of -25°C to +105°C.

Common Mode Chokes Feature Summary

Utilizes 10H ferrite material for effective noise suppression
Suitable for frequency ranges greater than or equal to 150 kHz
Features UL94 V-0 flame retardant base and cover

Common Mode Chokes Applications

AC power line filtering
EMI suppression in electronic equipment
Noise reduction in industrial control systems

Common Mode Chokes Procurement Notes

Verify the specific manufacturer designation, as some sources associate this part number with NEC-Tokin. Confirm that the component meets required safety certifications such as UL and TÜV for your intended application region.

Common Mode Chokes Selection Notes

Select this component when high inductance is required for low-frequency common mode noise attenuation. Ensure the circuit current does not exceed the 5 A rating and verify compatibility with the specified operating temperature range.

Common Mode Chokes Part Context

This component belongs to the SC series of common mode chokes manufactured by KEMET (formerly NEC-Tokin). These filters are engineered for robust performance in AC mains environments, providing reliable electromagnetic interference mitigation.
