SC-04-500

Common Mode Chokes Overview

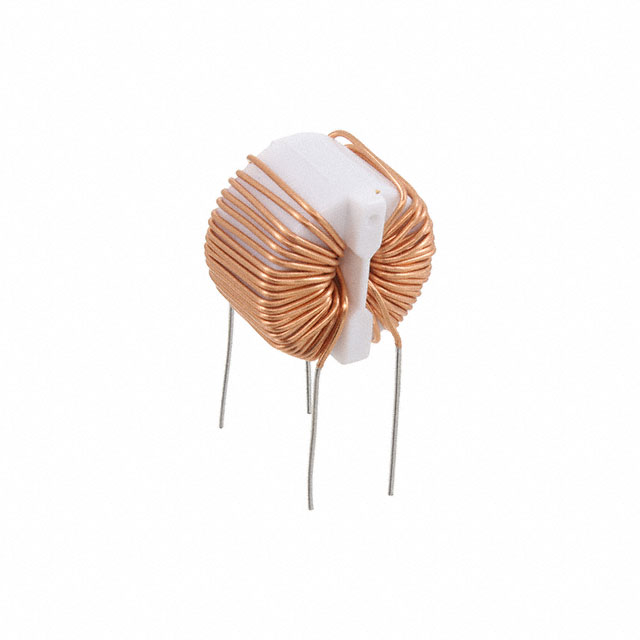

The KEMET SC-04-500 is a common mode choke from the SC Series, designed for AC line filtering applications. It features an inductance of 5 mH and supports a maximum DC current of 4 A. The component has a maximum DC resistance of 0.07 ohms and operates within a temperature range of -40°C to +105°C. Rated for 250V, it utilizes a ferrite core and through-hole mounting style.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for AC lines
• Utilizes a ferrite core for high-frequency attenuation
• Designed for through-hole PCB integration

Common Mode Chokes Applications

• AC line input filtering
• EMI suppression in power supplies
• Noise reduction in electronic equipment

Common Mode Chokes Procurement Notes

Verify the specific manufacturer datasheet for the SC-04-500 to confirm exact electrical tolerances and mechanical dimensions. Ensure compatibility with the target circuit's voltage and current requirements before procurement. Cross-reference official documentation to validate RoHS compliance status and operating temperature limits for the specific production batch.

Common Mode Chokes Selection Notes

Select this component when a 5 mH inductance and 4 A current rating are required for common mode noise filtering. Consider the through-hole package and physical dimensions for board layout constraints. Verify that the 250V rating and operating temperature range meet the system's environmental and electrical specifications.

Common Mode Chokes Part Context

This part belongs to KEMET's SC Series of common mode chokes. These components are engineered for general-purpose EMI filtering in AC power applications. The series offers various inductance and current ratings to suit different power levels and noise profiles.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers for the SC-04-500 were not identified in the provided source material.
