SC-04-D050

Common Mode Chokes Overview

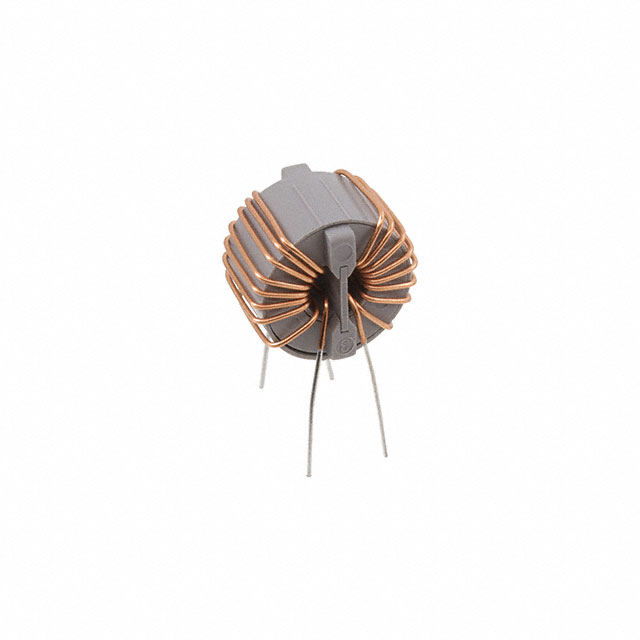

The SC-04-D050 is a through-hole common mode choke from the KEMET SC-D series. It features an inductance of 50 µH and a DC current rating of 4 A. The component has a maximum DC resistance of 25 mΩ. It operates within a temperature range of -40°C to +105°C.

Common Mode Chokes Feature Summary

• Provides common mode filtering for power lines
• Designed for through-hole mounting applications
• Rated for high DC current handling

Common Mode Chokes Applications

• Power supply input filtering
• EMI suppression in AC/DC converters
• Industrial equipment power stages

Common Mode Chokes Procurement Notes

Verify the manufacturer source, as YAGEO Group documentation references this part number under aliases such as UALSC04D050000. Confirm that the specific supplier listing aligns with the intended brand origin before procurement to ensure consistency with official specifications.

Common Mode Chokes Selection Notes

Select this component when a 50 µH inductance at 4 A is required for common mode noise reduction. Ensure the PCB layout supports through-hole mounting and accommodates the specified operating temperature range of -40°C to +105°C for reliable performance.

Common Mode Chokes Part Context

This component belongs to the SC-D series of common mode chokes manufactured by KEMET. These devices are engineered for power line applications requiring robust EMI suppression. The series offers various inductance values tailored for different current ratings and form factors.

Common Mode Chokes Replacement Considerations

Check for equivalents with identical 50 µH inductance and 4 A current rating. Verify physical dimensions for through-hole compatibility and confirm equivalent thermal performance characteristics.
