SC-05-100

Common Mode Chokes Overview

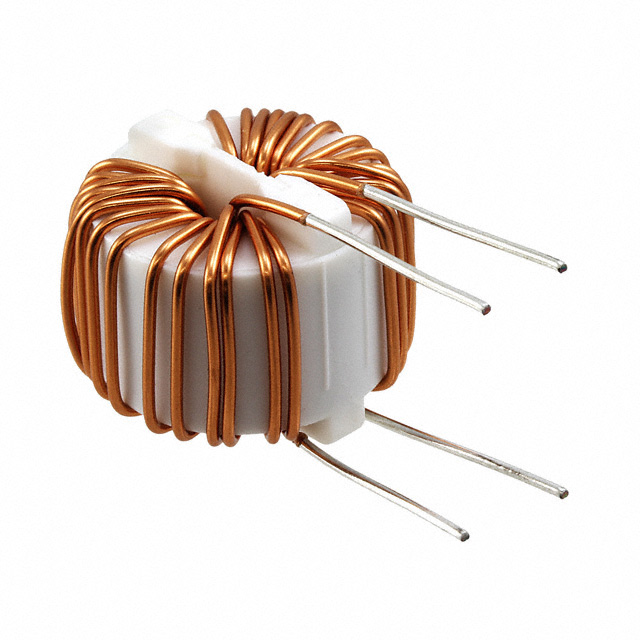

The KEMET SC-05-100 is a through-hole common mode filter designed for AC line applications. It features an inductance of 1 mH and supports a maximum DC current of 5 A. The component has a maximum DC resistance of unspecified low value within the series, operates between -25 °C and +80 °C, and utilizes a ferrite core. Physical dimensions are 25 mm diameter with a height of 25 mm and width of 22 mm. It is tested at 100 kHz and complies with RoHS standards.

Common Mode Chokes Feature Summary

• Provides common mode noise attenuation for AC power lines
• Supports high current handling up to 5 A
• Designed for PCB mounting via through-hole termination

Common Mode Chokes Applications

• AC line filtering in industrial equipment
• Power supply input stages
• Electromagnetic interference suppression in consumer electronics

Common Mode Chokes Procurement Notes

Verify the specific datasheet version for exact DC resistance values as distributor listings may vary. Confirm thermal rating requirements against the +80 °C maximum operating temperature. Ensure PCB layout accommodates the 25 mm diameter footprint. Check for alternative series variants if higher temperature ratings are required.

Common Mode Chokes Selection Notes

Select this component when 1 mH inductance is required for common mode noise reduction. The 5 A current rating suits moderate power applications. Consider the SC-J or SC-GV series if wider temperature ranges or different inductance tolerances are needed. Verify mechanical clearance for the cylindrical package size.

Common Mode Chokes Part Context

Part of the KEMET SC series of common mode chokes. This series offers various inductance values and current ratings. The SC-05-100 specifically targets 1 mH applications. It complements other KEMET EMI solutions like shielded materials and cable assemblies.

Common Mode Chokes Replacement Considerations

SC-05-100JV offers similar form factor with different tolerance. SC-05-300 provides higher inductance. SC-05-500 supports lower current but higher inductance. Verify pin compatibility and thermal limits before substitution.
