SC-05-100J

Common Mode Chokes Overview

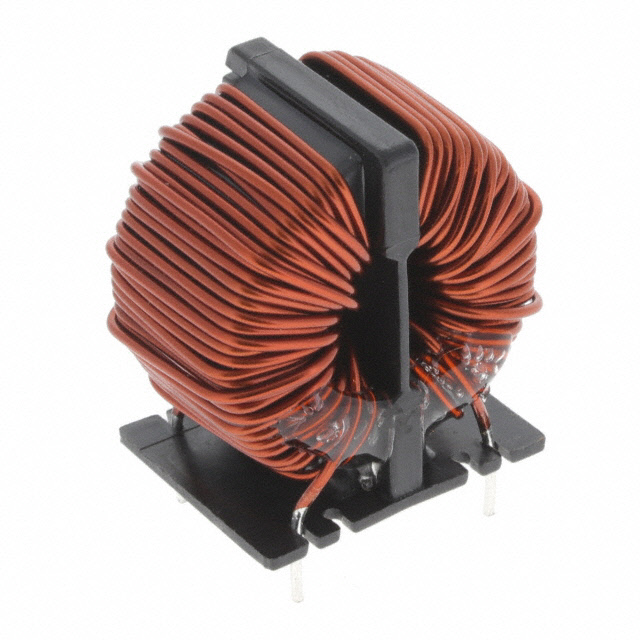

The KEMET SC-05-100J is a through-hole common mode filter choke designed for noise suppression in electronic circuits. It features an inductance of 10.5 mH at 16 kHz and supports a maximum DC current of 5 A. The component has a maximum DC resistance of 100 mOhms and operates within a temperature range of -25°C to +105°C. It utilizes a proprietary ferrite core and is rated for 250 V AC.

Common Mode Chokes Feature Summary

• Utilizes proprietary ferrite core technology for effective noise suppression
• Designed for through-hole PCB mounting applications
• Supports high current handling capabilities up to 5 A

Common Mode Chokes Applications

• Audio and video equipment noise filtering
• Office automation device power line protection
• Industrial equipment EMI suppression
• Digital home appliance circuit filtering
• Power supply unit input/output filtering

Common Mode Chokes Procurement Notes

Verify the specific part number suffix against official KEMET documentation, as variants such as SC-05-100JV may exist with different specifications. Confirm that the required inductance value aligns with the 10.5 mH rating rather than other series values. Ensure the package type matches the through-hole requirement for your design.

Common Mode Chokes Selection Notes

Select this component when a 10.5 mH inductance is required for common mode noise reduction in single-phase lines. Ensure the operating environment stays within the -25°C to +105°C temperature range. Verify that the 5 A current rating meets the circuit's maximum load requirements and that the 100 mOhm DCR is acceptable for voltage drop considerations.

Common Mode Chokes Part Context

This component belongs to the KEMET SC-JV series of common mode chokes. These devices are engineered for general-purpose noise suppression in various electronic systems. The series offers standardized form factors suitable for automated assembly processes while maintaining consistent magnetic performance across production batches.

Common Mode Chokes Replacement Considerations

SC-05-100JV is listed as a related variant in distributor catalogs. Verify if the JV suffix indicates identical electrical characteristics or specific packaging differences before substitution.
