SC-05-103

Common Mode Chokes Overview

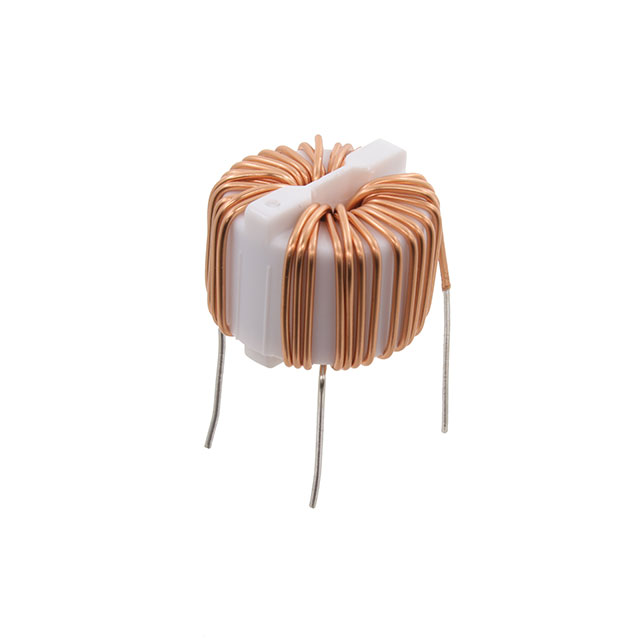

The KEMET SC-05-103 is a through-hole common mode choke designed for AC line filtering applications. It features an inductance of 1 mH and supports a current rating of 5 A with a DC resistance of 0.05 ohms. The component operates within a temperature range of -25°C to +120°C and withstands voltages up to 250 VAC.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for AC power lines
• Supports high current handling capabilities
• Constructed for through-hole mounting

Common Mode Chokes Applications

• AC line filtering
• Power supply input stages
• Electromagnetic interference mitigation

Common Mode Chokes Procurement Notes

Verify the specific manufacturer part number against official KEMET documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with required current loads and operating temperatures before integration into the design.

Common Mode Chokes Selection Notes

Select this component when common mode noise reduction is required on AC lines. Consider the 5 A current rating and 0.05 ohm resistance for power loss calculations. Verify that the through-hole package fits the target PCB layout constraints.

Common Mode Chokes Part Context

This component belongs to KEMET's series of wire wound inductors and chokes. It is utilized primarily for its ability to attenuate common mode signals while allowing differential mode currents to pass, making it suitable for power integrity management.

Common Mode Chokes Replacement Considerations

Consult official KEMET substitution guides or distributor cross-reference tools for verified equivalent components. Do not assume functional interchangeability without confirming matching inductance, current, and voltage specifications.
