SC-05-10J

Common Mode Chokes Overview

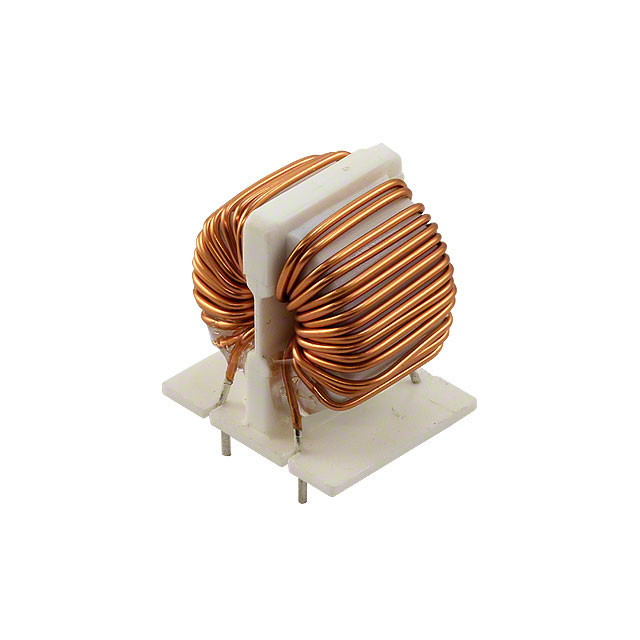

The KEMET SC-05-10J is a two-line common mode filter choke designed for through-hole PCB mounting. It features an inductance of 1 mH at 100 kHz and supports a maximum DC current of 5 A. The component has a maximum DC resistance of 50 mΩ and operates within a temperature range of -25 °C to +105 °C. Rated for 250 V, it utilizes ferrite core material and measures 34 mm in length.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for AC line applications
• Utilizes ferrite core material for effective filtering performance
• Designed for reliable through-hole printed circuit board integration

Common Mode Chokes Applications

• AC line filtering
• Common mode chokes
• Electromagnetic interference suppression

Common Mode Chokes Procurement Notes

Verify the manufacturer part number SC-05-10J against official KEMET documentation to confirm specifications. Ensure compatibility with required voltage ratings and current loads. Check for RoHS compliance status as indicated in technical datasheets. Confirm package type and mounting style match design requirements before procurement.

Common Mode Chokes Selection Notes

Select this component when a 1 mH inductance at 100 kHz is required for common mode noise reduction. Ensure the application demands a 5 A current rating and fits within the specified thermal operating range. Verify that through-hole mounting is suitable for the target PCB layout and mechanical constraints.

Common Mode Chokes Part Context

This component belongs to the SC series of common mode chokes manufactured by KEMET. These components are engineered for power line filtering applications requiring robust noise attenuation. The series offers various inductance values tailored for different electromagnetic interference mitigation needs in electronic circuits.

Common Mode Chokes Replacement Considerations

SC-05-500 is a related model within the same series offering 5 mH inductance.
