SC-05-1100

Common Mode Chokes Overview

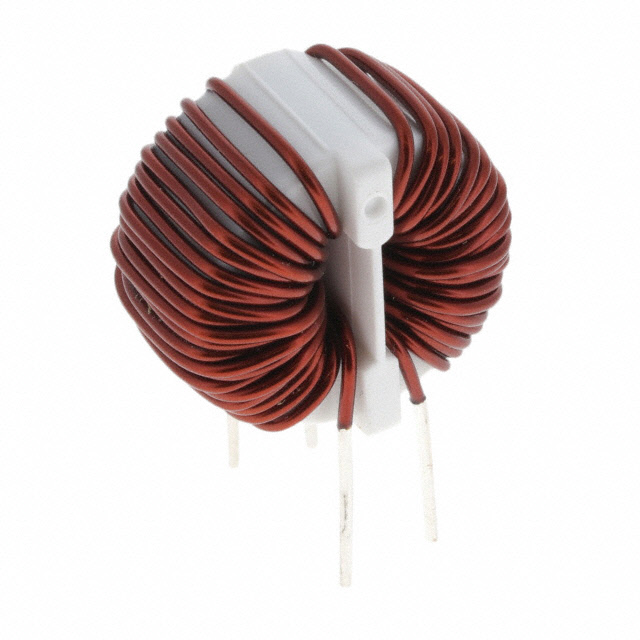

The KEMET SC-05-1100 is a through-hole common mode choke from the SC series, designed for AC line filtering. It features an inductance of 11 mH at 10 kHz and supports a maximum DC current of 5 A. The component has a maximum DC resistance of 55 mOhm and operates within a temperature range of -40°C to 120°C. Rated for 250 V AC and DC, it utilizes a ferrite core and offers a horizontal package with four pins.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for AC power lines
• Utilizes a ferrite core for effective high-frequency attenuation
• Designed for robust through-hole mounting applications

Common Mode Chokes Applications

• AC power line filtering
• Electromagnetic interference suppression in electronic equipment
• Power supply input stages

Common Mode Chokes Procurement Notes

Verify the specific operating temperature requirements against the -40°C to 120°C rating. Confirm that the 5 A current capacity meets the circuit design needs. Ensure the through-hole footprint matches the PCB layout. Check for RoHS compliance status if required by the final assembly specifications.

Common Mode Chokes Selection Notes

Select this component when 11 mH inductance at 10 kHz is required for common mode noise reduction. The 5 A current rating suits moderate power applications. Consider the physical dimensions and through-hole mounting style during PCB design. Verify compatibility with the 250 V AC/DC voltage environment.

Common Mode Chokes Part Context

This part belongs to the KEMET SC series of common mode chokes. These components are engineered for general-purpose EMI filtering in AC power circuits. The series offers various inductance values and current ratings to suit different power line requirements while maintaining a consistent form factor.

Common Mode Chokes Replacement Considerations

The manufacturer recommends SC-05-1100 as a replacement for discontinued parts like SC22-05-70JH. Verify electrical parameters such as inductance and current rating before substitution.
