SC-05-15J

$2.00

Description：CMC 1.5MH 5A 2LN TH
Series：SC-J
Mfr：KEMET
Package：Tray

SKU:34a9fa6c173b Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SC-05-15J is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 1.5MH 5A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for SC-05-15J

Description：CMC 1.5MH 5A 2LN TH
Series：SC-J
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：5A
DC Resistance (DCR) (Max)：40mOhm
Voltage Rating - DC：250V
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.984" L x 0.787" W (25.00mm x 20.00mm)
Height (Max)：1.063" (27.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：1.5 mH @ 100 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for SC-05-15J

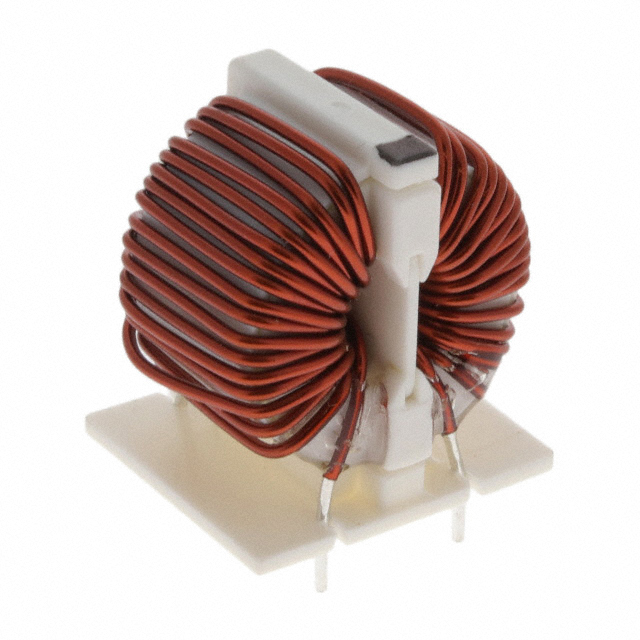

SC-05-15J

Common Mode Chokes Overview

The KEMET SC-05-15J is a through-hole common mode filter choke designed for power line applications. It features an inductance of 1.5 mH measured at 100 kHz and supports a maximum DC current of 5 A. The component has a maximum DC resistance of 40 mΩ and is rated for 250 VAC. It operates within a temperature range of -25 °C to +120 °C and utilizes proprietary ferrite materials suitable for frequencies greater than or equal to 150 kHz.

Common Mode Chokes Feature Summary

Utilizes proprietary 5H, 7H, and 10H ferrite materials optimized for high-frequency noise suppression
Designed for effective filtering in the 150 kHz frequency range and above
Constructed with UL94 V-0 flame retardant housing for enhanced safety compliance

Common Mode Chokes Applications

Power line common mode noise filtering
Electromagnetic interference (EMI) suppression in electronic circuits
Signal integrity protection in high-frequency applications

Common Mode Chokes Procurement Notes

Verify that the specific order matches the SC-05-15J part number to ensure correct inductance and current ratings. Confirm compatibility with the target PCB layout for through-hole mounting. Check operational temperature requirements against the specified -25 °C to +120 °C range. Ensure voltage ratings align with system specifications. Validate ferrite material suitability for the intended frequency spectrum.

Common Mode Chokes Selection Notes

Select this component when a 1.5 mH inductance at 100 kHz is required for common mode noise reduction. Consider the 5 A current rating and 40 mΩ DC resistance for power handling capabilities. Choose based on the need for through-hole installation and operation up to 120 °C. Evaluate the suitability of proprietary ferrite materials for frequencies above 150 kHz. Ensure the 250 VAC rating meets the circuit's electrical demands.

Common Mode Chokes Part Context

The SC-05-15J belongs to the SC-J series of common mode chokes manufactured by KEMET. This series offers various sizes and specifications tailored for power filtering applications. The component is distinct from other SC series variants like the SCF-05-350 or SC-05-100JV due to its specific 1.5 mH inductance and 5 A current rating profile.
