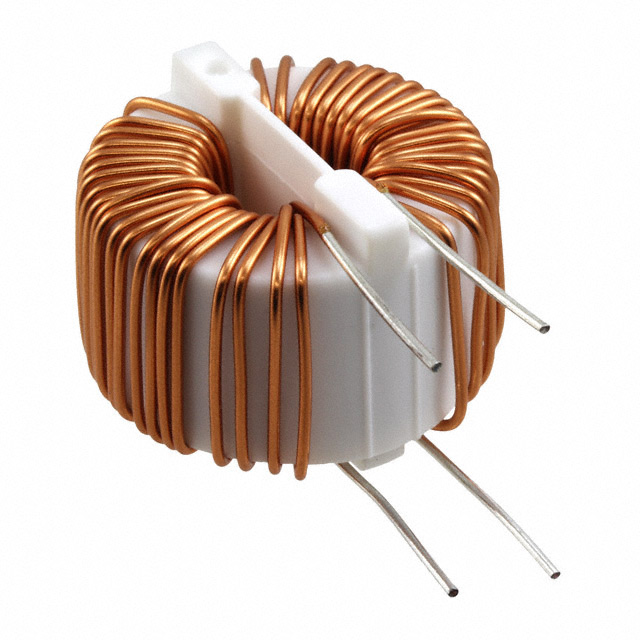

SC-05-300 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 3MH 5A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for SC-05-300
- Description：CMC 3MH 5A 2LN TH
- Series：SC
- Mfr：KEMET
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：5A
- DC Resistance (DCR) (Max)：55mOhm
- Voltage Rating - DC：250V
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.260" Dia (32.00mm)
- Height (Max)：1.260" (32.00mm)
- Package / Case：Vertical, No Base, 4 PC Pin
- Inductance @ Frequency：3 mH @ 100 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for SC-05-300
Common Mode Chokes Overview
The KEMET SC-05-300 is a through-hole common mode filter belonging to the SC series. It features an inductance of 3 mH and supports a maximum DC current of 5 A. The component has a maximum DC resistance of 0.055 ohms and operates within a temperature range of -25°C to +105°C. Designed for PCB mounting, it utilizes a nickel-zinc ferrite core and meets UL 94 V-0 flammability standards.
Common Mode Chokes Feature Summary
- Provides common mode noise suppression via high inductance filtering
- Utilizes nickel-zinc ferrite core material for effective performance
- Supports high current handling capabilities up to 5 A
- Complies with UL 94 V-0 flammability rating
Common Mode Chokes Applications
- Power supply input filtering
- EMI suppression in electronic circuits
- Common mode noise reduction in signal lines
Common Mode Chokes Procurement Notes
Verify the specific manufacturer part number against official KEMET documentation to ensure accuracy. Confirm that the required electrical parameters, including inductance and current ratings, match the design specifications. Check for any specific packaging or handling requirements defined in the datasheet before ordering.
Common Mode Chokes Selection Notes
Select this component when a 3 mH inductance and 5 A current rating are required for common mode filtering. Ensure the operating environment stays within the specified temperature limits. Consider the through-hole mounting style and physical dimensions for PCB layout compatibility.
Common Mode Chokes Part Context
This component is part of the KEMET SC series of common mode chokes. These components are designed for power and signal line applications requiring robust noise suppression. The series offers various inductance values and current ratings to suit different circuit requirements.
Common Mode Chokes Replacement Considerations
Consult official KEMET documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' components without verifying electrical and mechanical specifications.
