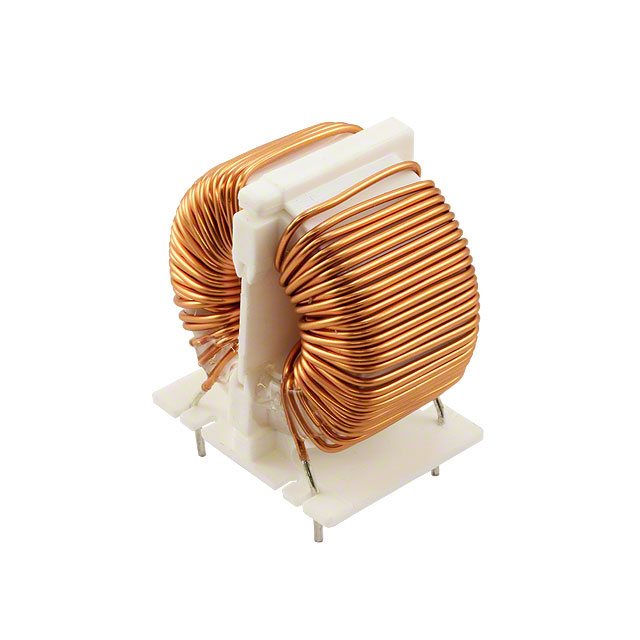

SC-05-30J

$3.94

Description：CMC 3MH 5A 2LN TH
Series：SC-J
Mfr：KEMET
Package：Bulk

SKU:adeb1a07da4c Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SC-05-30J is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 3MH 5A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for SC-05-30J

Description：CMC 3MH 5A 2LN TH
Series：SC-J
Mfr：KEMET
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：5A
DC Resistance (DCR) (Max)：70mOhm
Voltage Rating - DC：250V
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.339" L x 0.906" W (34.00mm x 23.00mm)
Height (Max)：1.299" (33.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：3 mH @ 100 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for SC-05-30J

SC-05-30J

Common Mode Chokes Overview

The KEMET SC-05-30J is a through-hole common mode choke from the SC-J series, designed for AC line filtering applications. It features an inductance of 3 mH at 100 kHz and supports a maximum DC current of 5 A. The component has a maximum DC resistance (DCR) of 70 mΩ and a voltage rating of 250 V. Operating temperatures range from -25 °C to +105 °C. Physical dimensions include a maximum length of 34 mm, height of 33 mm, and width of 23 mm.

Common Mode Chokes Feature Summary

Provides common mode noise suppression for AC power lines
Utilizes nickel-zinc ferrite core material for high-frequency performance
Designed for through-hole PCB mounting with leaded termination

Common Mode Chokes Applications

AC line input filtering in power supplies
EMI suppression in consumer electronics
Industrial equipment power interfaces

Common Mode Chokes Procurement Notes

Verify the specific suffix 'J' indicates the required tolerance and packaging configuration. Confirm that the 70 mΩ DCR and 5 A current rating align with the target circuit requirements. Ensure the through-hole footprint matches the PCB layout constraints. Check for RoHS compliance status if restricted substances are prohibited in the final assembly.

Common Mode Chokes Selection Notes

Select this component when a 3 mH inductance at 100 kHz is required for common mode noise reduction. The 5 A current rating suits moderate power applications. The through-hole package offers mechanical stability compared to surface mount alternatives. Consider the 250 V rating for standard AC line voltages.

Common Mode Chokes Part Context

The SC-J series represents KEMET's line of through-hole common mode chokes. These components are engineered for general-purpose EMI filtering in AC power circuits. The SC-05-30J specifically targets applications requiring robust current handling and standardized inductance values for regulatory compliance.
