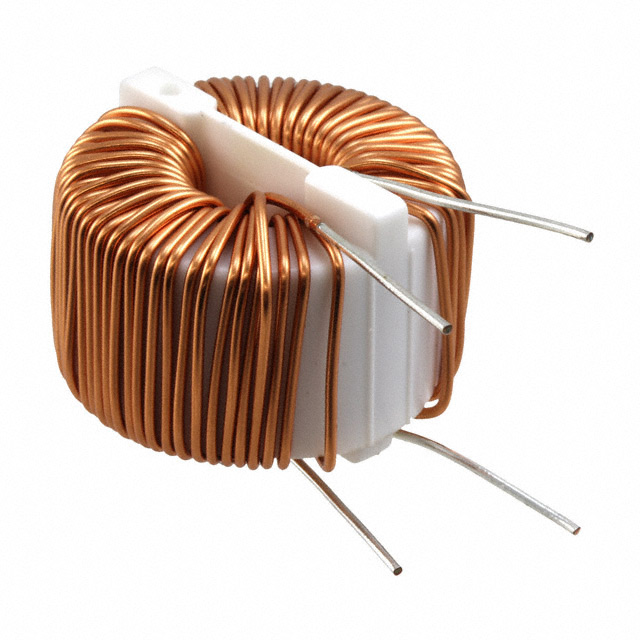

SC-05-500 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 5MH 4A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for SC-05-500
- Description：CMC 5MH 4A 2LN TH
- Series：SC
- Mfr：KEMET
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：4A
- DC Resistance (DCR) (Max)：80mOhm
- Voltage Rating - DC：250V
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.339" Dia x 0.906" W (34.00mm x 23.00mm)
- Height (Max)：1.339" (34.00mm)
- Package / Case：Vertical, No Base, 4 PC Pin
- Inductance @ Frequency：5 mH @ 100 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for SC-05-500
Common Mode Chokes Overview
The KEMET SC-05-500 is a single-channel common mode filter designed for through-hole PCB mounting. It features an inductance of 5 mH and supports a maximum DC current of 4 A. The component exhibits a maximum DC resistance of 80 mΩ and operates within a temperature range of -25 °C to +105 °C. Rated for 250 V, it utilizes a ferrite core material and measures 34 mm in length, 23 mm in depth, and 34 mm in height.
Common Mode Chokes Feature Summary
- Provides common mode noise suppression via high inductance filtering
- Utilizes a ferrite core for effective electromagnetic interference mitigation
- Designed for robust through-hole integration on printed circuit boards
Common Mode Chokes Applications
- AC line filtering applications
- Electromagnetic compatibility (EMC) circuits
- Power supply input stages
Common Mode Chokes Procurement Notes
Verify the specific manufacturer part number against official KEMET documentation to ensure accuracy. Confirm that the required electrical parameters, including inductance and current ratings, align with the design specifications. Check for RoHS compliance status as indicated in the official datasheet. Ensure the through-hole package dimensions fit the intended PCB layout constraints before procurement.
Common Mode Chokes Selection Notes
Select this component when a 5 mH inductance value is required for common mode noise reduction in AC line applications. Ensure the operating environment stays within the specified -25 °C to +105 °C temperature range. Verify that the 4 A maximum DC current rating meets the circuit requirements. Consider the physical dimensions for adequate spacing on the PCB assembly.
Common Mode Chokes Part Context
This component belongs to the SC series of common mode chokes manufactured by KEMET. The series offers various inductance values tailored for different filtering needs. These components are engineered to address electromagnetic interference issues in electronic systems. The SC series is widely used in power electronics for noise suppression.
Common Mode Chokes Replacement Considerations
Consult official KEMET documentation for confirmed substitute part numbers. Do not assume cross-compatibility with other manufacturers' components without verifying electrical and mechanical specifications.
