SC-05-50J

Common Mode Chokes Overview

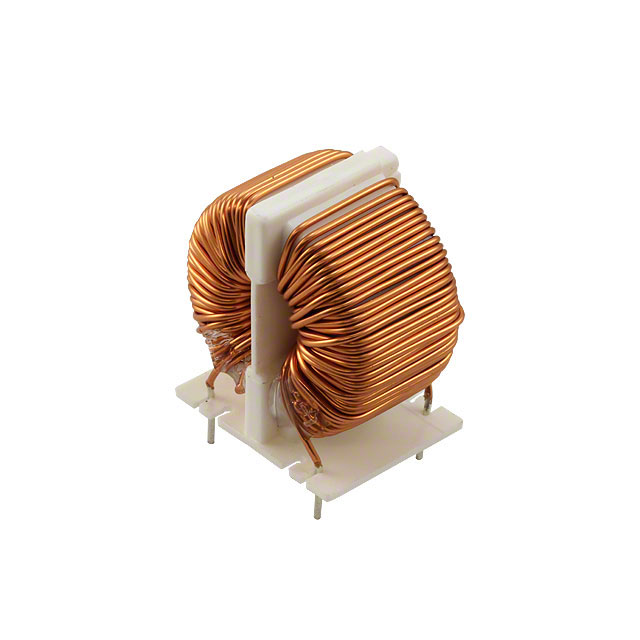

The KEMET SC-05-50J is a through-hole common mode filter choke designed for power line noise suppression. It features an inductance of 5 mH with a tolerance range of -30% to +50%. The component supports a maximum DC current of 4 A and exhibits a maximum DC resistance of 80 mΩ. Rated for 250 V, it operates within a temperature range of -25 °C to +105 °C. Physical dimensions include a maximum length of 34 mm, height of 33 mm, and depth of 23 mm.

Common Mode Chokes Feature Summary

• Provides effective common mode noise attenuation for power circuits
• Utilizes nickel-zinc ferrite core material for stable magnetic performance
• Designed for reliable through-hole PCB mounting

Common Mode Chokes Applications

• Power supply input filtering
• EMI suppression in AC mains lines
• Industrial equipment noise reduction

Common Mode Chokes Procurement Notes

Verify the specific part number against official KEMET documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with existing PCB footprint requirements before procurement. Cross-reference manufacturer datasheets for accurate RoHS compliance status and handling instructions.

Common Mode Chokes Selection Notes

Select this component based on required inductance values and current carrying capacity. Verify that the operating temperature range meets system environmental conditions. Confirm that the physical package dimensions fit within the designated board space constraints.

Common Mode Chokes Part Context

This component belongs to the KEMET SC-J series of common mode chokes. The series offers various inductance options tailored for different power line filtering applications. These components are engineered for robust performance in industrial and commercial electronic systems requiring effective electromagnetic interference mitigation.

Common Mode Chokes Replacement Considerations

SC-05-500 is a verified substitute within the same series offering similar form factor characteristics.
