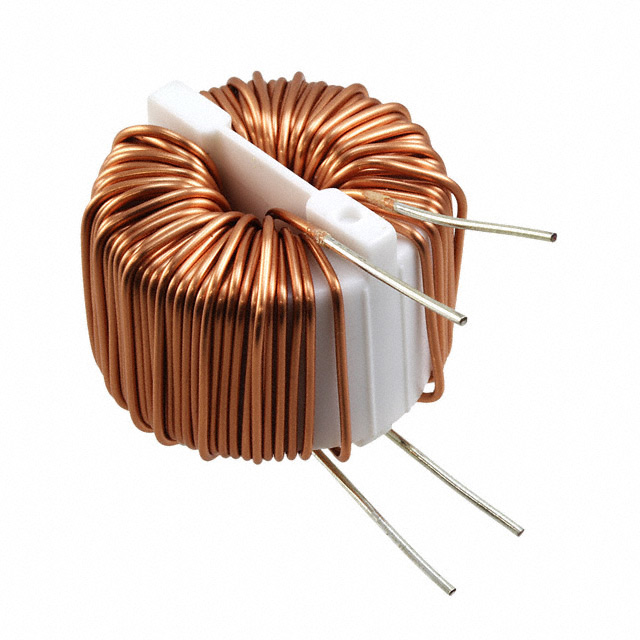

SC-05-800 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 8MH 4A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for SC-05-800
- Description：CMC 8MH 4A 2LN TH
- Series：SC
- Mfr：KEMET
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：4A
- DC Resistance (DCR) (Max)：85mOhm
- Voltage Rating - DC：250V
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.339" Dia x 0.906" W (34.00mm x 23.00mm)
- Height (Max)：1.339" (34.00mm)
- Package / Case：Vertical, No Base, 4 PC Pin
- Inductance @ Frequency：8 mH @ 100 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for SC-05-800
Common Mode Chokes Overview
The KEMET SC-05-800 is a through-hole common mode filter designed for AC line applications. It features an inductance of 3.6 mH and supports a maximum DC current of 4 A. The component has a maximum DC resistance of 80 milliohms and operates within a temperature range of -25 °C to +105 °C. It utilizes a nickel-zinc ferrite core and meets UL 94 V-0 flammability standards.
Common Mode Chokes Feature Summary
- Provides common mode noise suppression for AC line circuits
- Utilizes nickel-zinc ferrite core material for effective filtering
- Supports high current handling up to 4 A
- Complies with UL 94 V-0 flammability rating
Common Mode Chokes Applications
- AC line input filtering
- Power supply EMI suppression
- General electronic equipment noise reduction
Common Mode Chokes Procurement Notes
Verify the specific manufacturer part number against official KEMET documentation to ensure accuracy. Confirm that the required inductance, current rating, and physical dimensions match the design specifications. Check for RoHS compliance status if required by the target application regulations.
Common Mode Chokes Selection Notes
Select this component when a through-hole common mode choke with approximately 3.6 mH inductance is needed. Ensure the circuit current does not exceed 4 A and the operating environment stays within the specified temperature limits. Verify PCB footprint compatibility before integration.
Common Mode Chokes Part Context
This component belongs to the KEMET SC series of common mode filters. These components are engineered for general-purpose electromagnetic interference suppression in AC power lines. The series offers various inductance values to suit different filtering requirements while maintaining standard through-hole mounting capabilities.
Common Mode Chokes Replacement Considerations
Consult official KEMET substitution guides for verified alternatives. Cross-reference inductance, current rating, and physical dimensions when evaluating potential substitutes.
