SC-05-803

Common Mode Chokes Overview

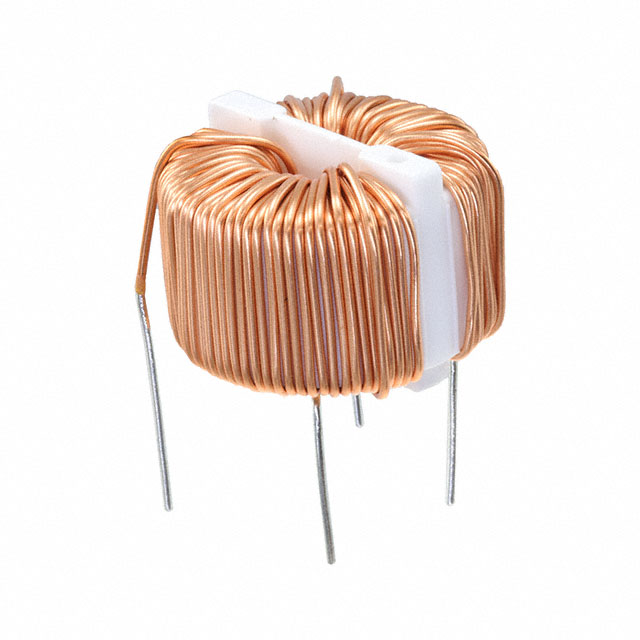

The KEMET SC-05-803 is a through-hole common mode filter designed for AC line applications. It features an inductance of 8 mH and supports a maximum DC current of 4 A with a maximum DC resistance of 90 mOhms. Rated for 250 VAC, the component operates within a temperature range of -25 °C to +120 °C. The device utilizes ferrite core material and is housed in a single-channel configuration suitable for PCB mounting.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for AC power lines
• Utilizes ferrite core construction for effective filtering
• Supports high current handling up to 4 A

Common Mode Chokes Applications

• AC power line filtering
• EMI suppression in electronic equipment
• Noise reduction in power supplies

Common Mode Chokes Procurement Notes

Verify the specific datasheet version and manufacturer specifications before procurement. Confirm that the 90 mOhms DC resistance aligns with your circuit requirements. Ensure the through-hole package dimensions fit your PCB layout constraints. Check for RoHS compliance status if required by your manufacturing standards.

Common Mode Chokes Selection Notes

Select this component when an 8 mH inductance value is required for common mode noise attenuation. Consider the 4 A current rating to ensure it meets the load requirements without saturation. Verify the operating temperature range suits the environmental conditions of the target application.

Common Mode Chokes Part Context

This part belongs to the KEMET SC series of common mode chokes. These components are engineered for general-purpose EMI filtering in AC mains applications. The series offers various inductance values to suit different noise suppression needs while maintaining robust electrical characteristics.

Common Mode Chokes Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
