SC-05-D0065

Common Mode Chokes Overview

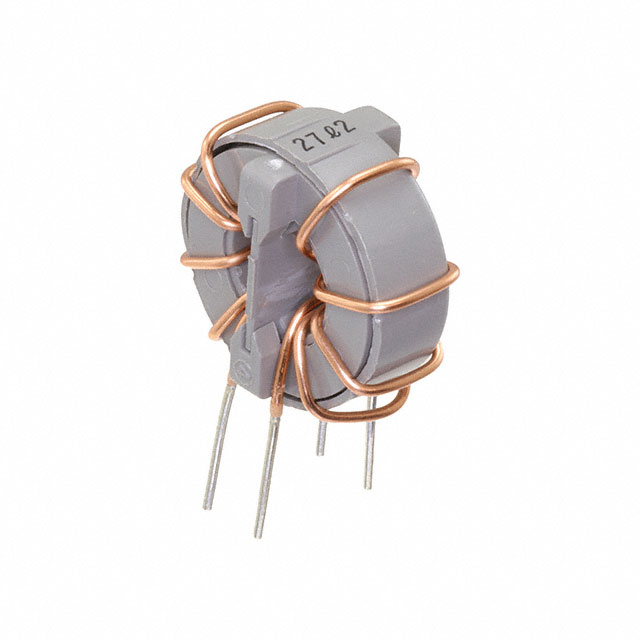

The KEMET SC-05-D0065 is a through-hole common mode choke belonging to the SC series. It features an inductance of 6.5 µH and a maximum DC current rating of 5 A. The component has a low DC resistance (DCR) of 10 mΩ and is rated for 250 VAC. Designed for AC line filtering, it utilizes a ferrite core material and offers a compact footprint suitable for standard PCB mounting.

Common Mode Chokes Feature Summary

• Provides effective common mode noise suppression for AC power lines
• Utilizes a ferrite core for stable magnetic performance
• Features low DC resistance to minimize power loss
• Supports high current handling capabilities

Common Mode Chokes Applications

• AC line input filtering
• EMI suppression in power supplies
• General purpose noise reduction in electronic equipment

Common Mode Chokes Procurement Notes

Verify the specific package type and lead configuration against the official datasheet before integration. Confirm that the 5 A current rating and 250 VAC voltage rating align with the target circuit requirements. Ensure compatibility with the intended PCB footprint and mounting process.

Common Mode Chokes Selection Notes

Select this component when a robust through-hole solution is required for AC line filtering. The low DCR makes it suitable for applications where efficiency is critical. Consider the physical dimensions and lead spacing to ensure proper fit within the enclosure and on the board layout.

Common Mode Chokes Part Context

This part belongs to KEMET's SC series of common mode chokes, designed for general-purpose EMI filtering. The series offers various inductance values and current ratings to suit different power line applications. These components are widely used in consumer electronics and industrial equipment for noise mitigation.

Common Mode Chokes Replacement Considerations

Consult official KEMET documentation for verified substitute part numbers. Cross-referencing should be limited to components with identical electrical specifications and mechanical dimensions as confirmed by manufacturer data.
