SC-05-D030J

Common Mode Chokes Overview

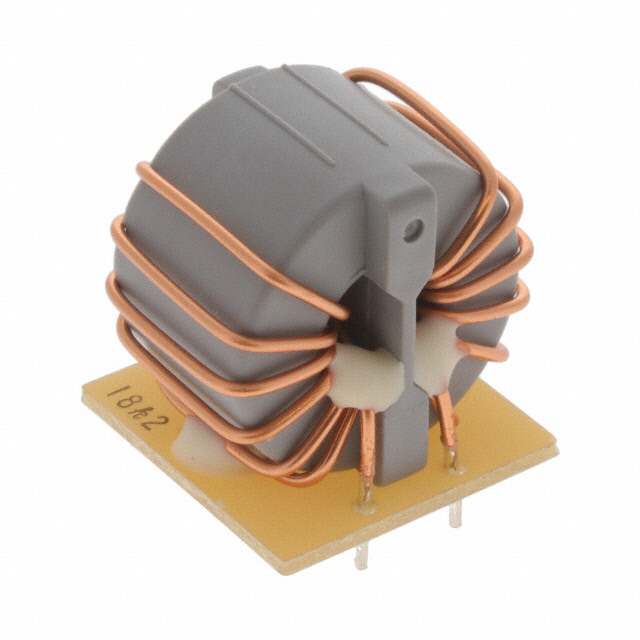

The KEMET SC-05-D030J is a through-hole common mode choke from the SC series, designed for PCB mounting. It features an inductance of 30 µH at 100 kHz and supports a maximum DC current of 5 A. The component has a maximum DC resistance of 20 mΩ and operates within a temperature range of -25 °C to +105 °C.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression via dual-line filtering architecture
• Utilizes nickel-zinc ferrite core material for stable magnetic performance
• Designed for reliable through-hole PCB integration

Common Mode Chokes Applications

• General electronic equipment EMI suppression
• Power supply input filtering
• Signal line noise reduction

Common Mode Chokes Procurement Notes

Verify the specific part number against official KEMET documentation to confirm electrical parameters and physical dimensions. Ensure compatibility with your PCB footprint and thermal requirements. Cross-reference datasheets for any updates on RoHS compliance or automotive qualification status before finalizing procurement decisions.

Common Mode Chokes Selection Notes

Select this component when a 30 µH inductance rating and 5 A current handling capability are required for common mode noise mitigation. Consider the through-hole package style and operating temperature range of -25 °C to +105 °C for environmental suitability. Verify that the 20 mΩ DC resistance meets your circuit's power loss constraints.

Common Mode Chokes Part Context

This component belongs to the KEMET SC series of common mode chokes, which offers various inductance values and current ratings. The SC-05-D030J specifically targets applications requiring moderate inductance with high current capacity in a standard through-hole form factor.

Common Mode Chokes Replacement Considerations

Consult official KEMET substitution guides for verified alternatives. Ensure replacement parts match the 30 µH inductance, 5 A current rating, and through-hole package dimensions.
