SC-05-D150H

Common Mode Chokes Overview

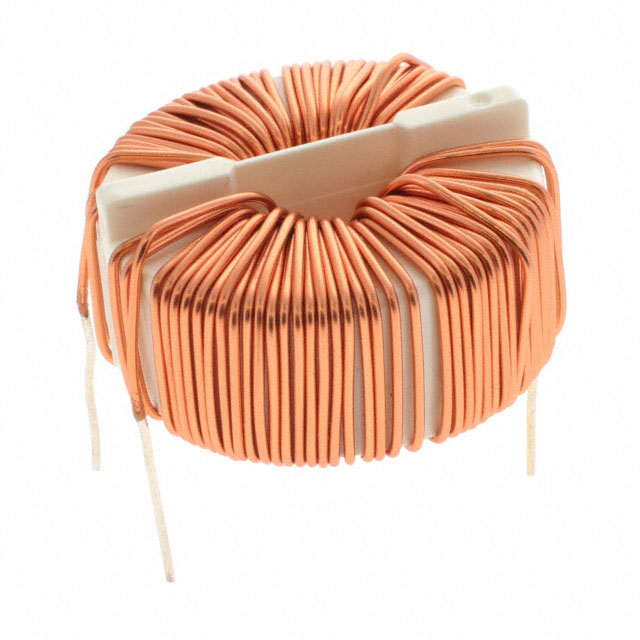

The KEMET SC-05-D150H is a through-hole common mode filter choke designed for power line noise suppression. It features an inductance of 1,500 µH and supports a maximum DC current of 5 A with a maximum DC resistance of 90 mΩ. The component operates within a temperature range of -25 °C to +120 °C and utilizes a ferrite core material. Rated at 250 V, it meets UL 94 V–2 flame retardant standards for the capacitor housing.

Common Mode Chokes Feature Summary

• Provides effective common mode noise filtering for power circuits
• Supports high current handling up to 5 A
• Features a wide operating temperature range from -25 °C to +120 °C
• Constructed with UL 94 V–2 rated flame retardant materials

Common Mode Chokes Applications

• Power supply input filtering
• EMI suppression in electronic equipment
• Industrial control systems

Common Mode Chokes Procurement Notes

Verify the specific suffix or variant against official KEMET documentation to ensure compatibility with design requirements. Confirm that the 5 A current rating and 1,500 µH inductance align with circuit specifications. Check for any updated regulatory compliance certifications prior to final procurement decisions.

Common Mode Chokes Selection Notes

Select this component when high current capacity and broad thermal stability are required for common mode noise reduction. Ensure the through-hole mounting style fits the PCB layout constraints. Verify that the 90 mΩ DC resistance does not cause excessive voltage drop in the application circuit.

Common Mode Chokes Part Context

This part belongs to the SC series of common mode chokes from KEMET, which offers a variety of sizes and specifications for power applications. The SC-05-D150H specifically targets scenarios requiring robust noise suppression with high current capabilities.

Common Mode Chokes Replacement Considerations

Cross-reference with other SC series parts like SC-05-350 or SC-05-500 if different inductance values are needed. Ensure substitute components match the 5 A current rating and through-hole package dimensions.

Common Mode Chokes FAQ

What is the maximum DC current rating for the SC-05-D150H?

The maximum DC current rating is 5 A.

Is the SC-05-D150H suitable for high-temperature environments?

Yes, it has an operating temperature range from -25 °C to +120 °C.
