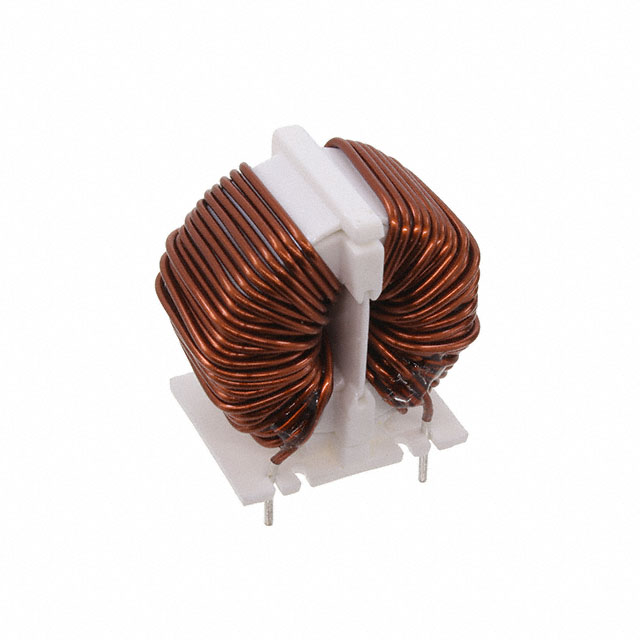

SC-06-10J-B

$1.66

Description：CMC 1MH 6A 2LN TH
Series：SC-J
Mfr：KEMET
Package：Tray

SKU:c39d188b98d3 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SC-06-10J-B is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 1MH 6A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for SC-06-10J-B

Description：CMC 1MH 6A 2LN TH
Series：SC-J
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：6A
DC Resistance (DCR) (Max)：30mOhm
Voltage Rating - DC：250V
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.984" L x 0.787" W (25.00mm x 20.00mm)
Height (Max)：1.063" (27.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：1 mH @ 1 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for SC-06-10J-B

SC-06-10J-B

Common Mode Chokes Overview

The KEMET SC-06-10J-B is a through-hole common mode filter designed for PCB mounting. It features an inductance of 1 mH and supports a maximum DC current of 6 A. The component has a maximum DC resistance of 50 milliohms and operates within a temperature range of -25°C to +105°C.

Common Mode Chokes Feature Summary

Provides common mode noise suppression via integrated choke functionality
Utilizes through-hole termination for secure printed circuit board installation

Common Mode Chokes Applications

Electromagnetic interference filtering in power supply circuits
Signal integrity protection in electronic assemblies requiring common mode rejection

Common Mode Chokes Procurement Notes

Verify the specific suffix against official manufacturer documentation, as variations such as SC-06-10JS or SC-06-10J-B may exist with distinct electrical tolerances or packaging configurations. Confirm that the required current rating and inductance values align precisely with the target application design specifications before procurement.

Common Mode Chokes Selection Notes

Select this component when a single-channel common mode filter is required for through-hole assembly. Ensure the operating environment remains within the specified thermal limits and that the peak current does not exceed the rated maximum to maintain performance stability.

Common Mode Chokes Part Context

This component belongs to the SC series of common mode filters manufactured by KEMET. These devices are engineered for general-purpose electromagnetic interference mitigation in electronic systems requiring robust passive filtering solutions.
