SC-06-E200H

Common Mode Chokes Overview

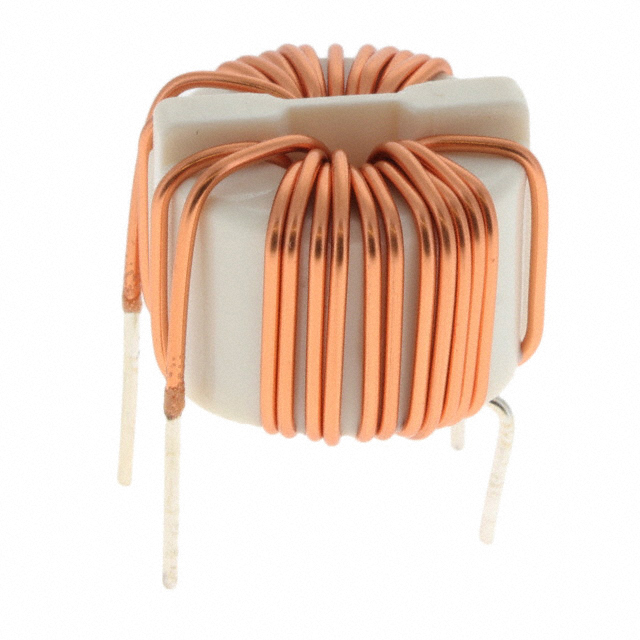

The KEMET SC-06-E200H is a through-hole common mode choke belonging to the SC standard series. It features an inductance of 2 mH and supports a maximum current of 6 A with a DC resistance of 0.027 Ohms. Rated for 250 VAC, this component operates within a temperature range of -25°C to +120°C.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for power lines
• Designed for through-hole mounting applications
• Constructed for high current handling capabilities

Common Mode Chokes Applications

• Power supply input filtering
• EMI suppression in AC mains circuits
• Industrial equipment noise reduction

Common Mode Chokes Procurement Notes

Verify the specific manufacturer source, as documentation indicates potential aliasing or cross-listing by other entities such as Yageo. Confirm that the part number corresponds strictly to the KEMET SC series specifications regarding inductance and current ratings before procurement.

Common Mode Chokes Selection Notes

Select this component when through-hole installation is required for common mode chokes. Ensure the design accommodates the 6 A current rating and 0.027 Ohm DC resistance. Verify thermal management requirements given the operating temperature limit of 120°C.

Common Mode Chokes Part Context

This component belongs to the SC series of common mode chokes manufactured by KEMET. The series is characterized by through-hole construction and is intended for general-purpose power line filtering applications requiring robust noise suppression.

Common Mode Chokes Replacement Considerations

Documentation references UALSC06E200H00 as an alias potentially associated with Yageo. Verify electrical equivalence if considering alternative sourcing from different manufacturers.
