SC-07-30JM

$4.00

Description：CMC 3MH 7A 2LN TH
Series：SC-J
Mfr：KEMET
Package：Tray

SKU:d7985a85b5e6 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SC-07-30JM is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 3MH 7A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for SC-07-30JM

Description：CMC 3MH 7A 2LN TH
Series：SC-J
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：7A
DC Resistance (DCR) (Max)：39mOhm
Voltage Rating - DC：250V
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.299" L x 0.906" W (33.00mm x 23.00mm)
Height (Max)：1.299" (33.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：3 mH @ 10 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for SC-07-30JM

SC-07-30JM

Common Mode Chokes Overview

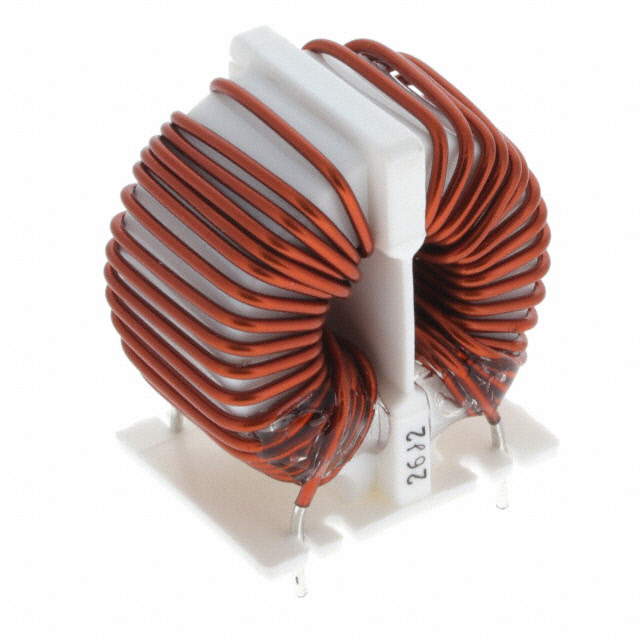

The KEMET SC-07-30JM is a through-hole common mode choke belonging to the SC-J series. It features a 3 mH inductance measured at 10 kHz and supports a maximum DC current of 7 A with a DC resistance of 39 mOhms. Designed for PCB mounting, it operates within a temperature range of -25°C to +120°C and withstands up to 250 VAC. The component utilizes a single-channel configuration with an 8 mm lead spacing.

Common Mode Chokes Feature Summary

Provides effective common mode noise suppression for AC line applications
Supports high current handling capabilities suitable for power filtering
Features robust construction for reliable operation across wide temperature ranges

Common Mode Chokes Applications

AC line filtering in power supplies
EMI suppression in electronic equipment
Common mode noise reduction in industrial control systems

Common Mode Chokes Procurement Notes

Verify the specific ordering suffix against official KEMET documentation to ensure correct electrical parameters and packaging. Confirm that the required current rating and inductance values align with system design specifications before procurement. Check for any recent product lifecycle changes or alternative package options available from authorized distributors.

Common Mode Chokes Selection Notes

Select this component when a through-hole common mode choke with 3 mH inductance and 7 A current capacity is required. Ensure the PCB layout accommodates the specified lead spacing and physical dimensions. Consider thermal management requirements given the operating temperature range and DC resistance characteristics for optimal performance.

Common Mode Chokes Part Context

This part belongs to KEMET's SC-J series of common mode chokes designed for AC line filtering. These components are engineered for through-hole mounting on printed circuit boards. The series offers various inductance and current ratings to meet diverse EMI suppression needs in power electronics applications.
