SC-07-50J

Common Mode Chokes Overview

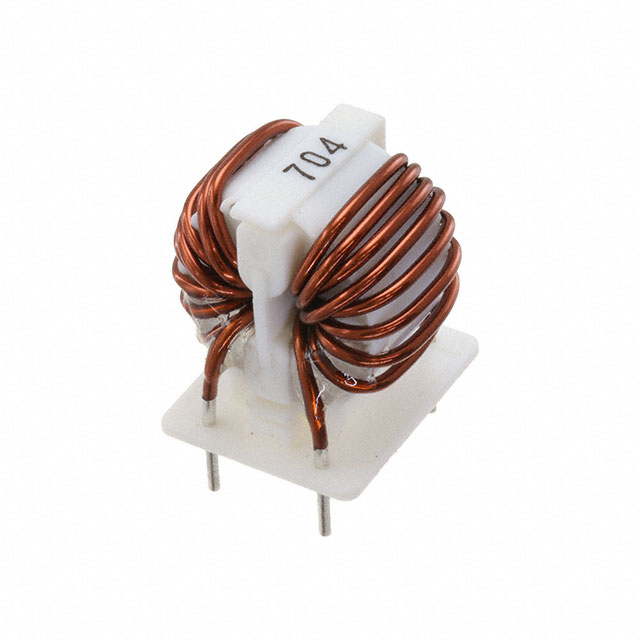

The KEMET SC-07-50J is a through-hole common mode choke belonging to the SC-J series. It features an inductance of 5 mH at 10 kHz and supports a maximum DC current of 7.3 A with a maximum DC resistance of 27 mOhms. The component operates within a temperature range of -25°C to +120°C and utilizes proprietary ferrite materials effective for frequencies ≥150 kHz.

Common Mode Chokes Feature Summary

• Utilizes proprietary 5H, 7H, and 10H ferrite materials for high-frequency performance
• Designed for common mode noise suppression in power applications
• Through-hole mounting style for PCB integration

Common Mode Chokes Applications

• Common mode filtering in power circuits
• Noise suppression for frequencies ≥150 kHz
• General purpose EMI mitigation in electronic equipment

Common Mode Chokes Procurement Notes

Verify the specific manufacturer part number against official KEMET documentation to ensure compatibility with design requirements. Confirm that the 7.3 A current rating and 27 mOhm resistance meet circuit specifications. Check for RoHS compliance status as indicated in product datasheets before procurement.

Common Mode Chokes Selection Notes

Select this component when a 5 mH inductance and 7.3 A current handling capability are required for common mode noise reduction. Ensure the operating environment stays within the -25°C to +120°C range. Consider the through-hole package constraints and lead spacing during PCB layout planning.

Common Mode Chokes Part Context

The SC-07-50J is part of KEMET's SC-J series of common mode chokes. This series is characterized by the use of specialized ferrite materials optimized for power line filtering. The component serves as a passive filter element to attenuate electromagnetic interference in electrical systems.

Common Mode Chokes Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
