SC-07-650

Common Mode Chokes Overview

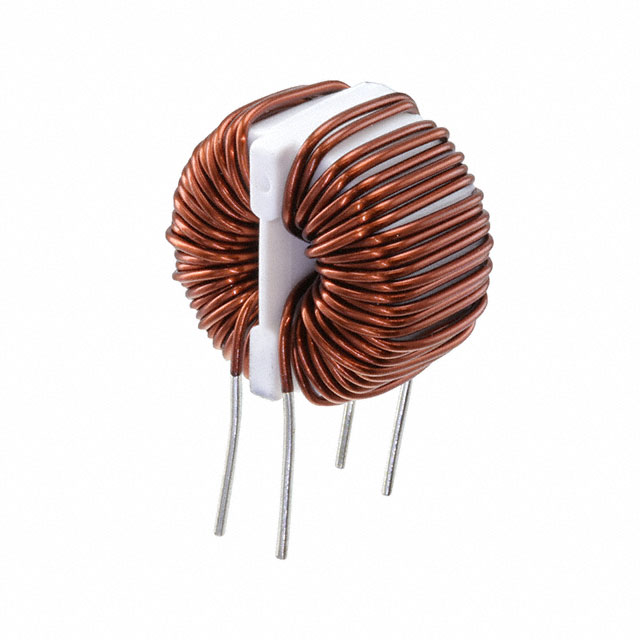

The KEMET SC-07-650 is a through-hole common mode choke designed for AC line filtering applications. It features an inductance of 6.5 mH measured at 1 kHz and supports a maximum DC current rating of 7 A. The component exhibits a maximum DC resistance of 40 milliohms and operates within a temperature range of -25°C to 120°C. Rated for 250 VAC, it utilizes a vertical package with four pins and a diameter of 35 mm.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for power lines
• Supports high current handling up to 7 A
• Designed for through-hole mounting on printed circuit boards

Common Mode Chokes Applications

• AC line input filtering
• Power supply EMI reduction
• Industrial equipment noise suppression

Common Mode Chokes Procurement Notes

Verify the specific datasheet version to confirm exact dimensional tolerances and thermal characteristics. Ensure the selected variant matches the required voltage rating and current capacity for the target application. Cross-reference pin configurations to guarantee compatibility with existing board layouts.

Common Mode Chokes Selection Notes

Select this component when high current capability and significant inductance are required for common mode noise attenuation. Evaluate the physical size constraints due to the 35 mm diameter. Confirm that the operating temperature range meets the environmental requirements of the final assembly.

Common Mode Chokes Part Context

This part belongs to KEMET's SC series of common mode chokes. These components are engineered for robust performance in power line filtering scenarios. The series offers various inductance values to suit different noise frequencies and current loads.

Common Mode Chokes Replacement Considerations

Check for equivalent parts from other manufacturers offering similar inductance and current ratings. Verify that substitute components match the physical footprint and pin configuration to ensure direct replacement without board modifications.
